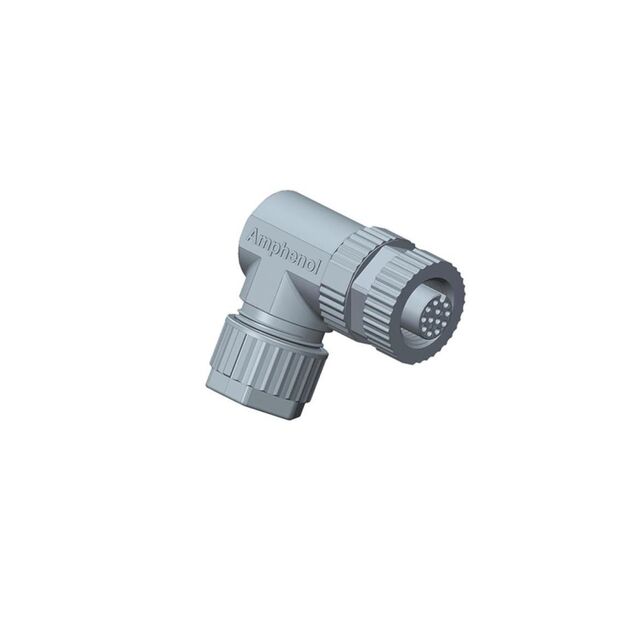

M12A-03BFFA-SR7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, SOLDER,

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, SOLDER,

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-03BFFA-SR7001

Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-3
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

Part	Features	Shielding	Orientation	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Contact Finish - Mating	Voltage Rating	Ingress Protection	Primary Material	Shell Size - Insert	Backshell Material, Plating	Termination	Current Rating (Amps)	Insert Material
Amphenol LTW M12A-03BFFA-SR7001	Backshell Coupling Nut	Unshielded	A	Copper Alloy	Free Hanging (In-Line) Right Angle	-40 °C	105 ░C	Black	4.5 mm 6.5 mm	0.177 in 0.256 in	Female Sockets Plug	Gold	250 VDC	IP67 - Dust Tight Waterproof	Plastic	M12-3	Thermoplastic	Screw	4 A	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Screw
