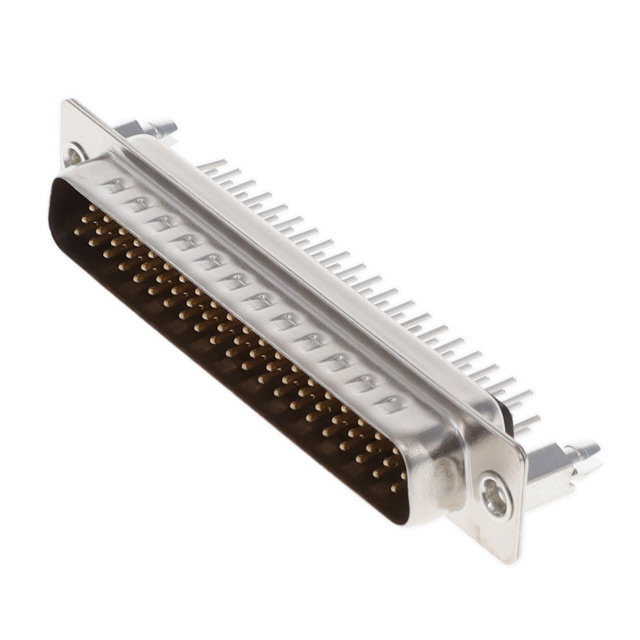

K86X-CD-62P-BR

Active

Kycon, Inc.

CONN D-SUB HD PLUG 62P VERT SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB HD PLUG 62P VERT SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	K86X-CD-62P-BR	K86X-CD Series

Color	Black	Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Form	Stamped	Stamped
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	1.5 A	1.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40	Board Side, 4-40, Housing/Shell (Unthreaded), Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	62	62
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	75 - 105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	4	4
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

CONN D-SUB HD PLUG 62P VERT SLDR

Part	Connector Type	Number of Rows	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Termination	Contact Type	Shell Material, Finish	Flange Feature	Voltage Rating	Material Flammability Rating	Connector Style	Features	Contact Finish Thickness	Color	Contact Form	Shell Size, Connector Layout	Dielectric Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Kycon, Inc. K86X-CD-62P-BR	Male Pins, Plug	3	Brass	Through Hole	105 ░C	-55 °C	1.5 A	62	Solder	Signal	Nickel Plated, Steel	4-40, Board Side	30 VAC	UL94 V-0	D-Sub, High Density	Board Lock, Grounding Indents	Flash	Black	Stamped	4	Polybutylene Terephthalate (PBT), Glass Filled	Gold
Kycon, Inc. K86X-CD-62S-30	Receptacle, Female Sockets	3	Brass	Through Hole	75 ░C	-55 °C	1.5 A	62	Solder	Signal	Nickel Plated, Steel	Housing/Shell (Unthreaded)	30 VAC	UL94 V-0	D-Sub, High Density			Black	Stamped	4	Polybutylene Terephthalate (PBT), Glass Filled	Gold	0.76 Ám	30 Áin
Kycon, Inc. K86X-CD-62S-KJ30	Receptacle, Female Sockets	3	Brass	Through Hole	75 ░C	-55 °C	1.5 A	62	Solder	Signal	Nickel Plated, Steel	Board Side (4-40), Mating Side, Female Screwlock (4-40)	30 VAC	UL94 V-0	D-Sub, High Density			Black	Stamped	4	Polybutylene Terephthalate (PBT), Glass Filled	Gold	0.76 Ám	30 Áin
