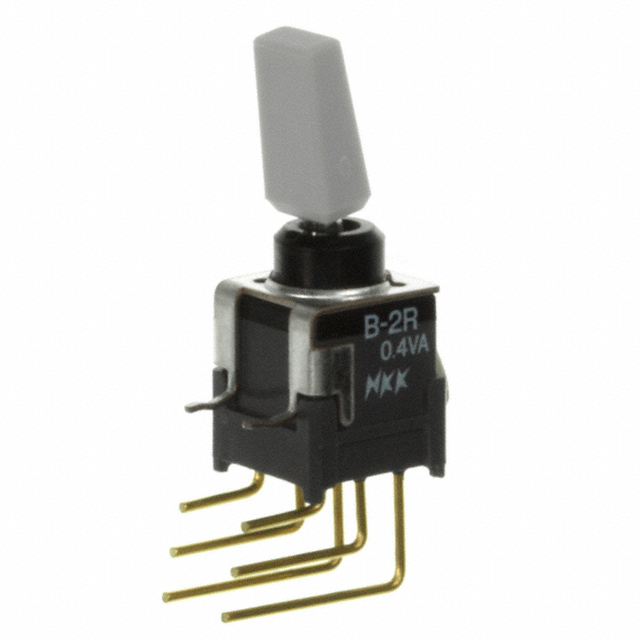

B2RKV-AH

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	B2RKV-AH

Actuator Length [x]	9.4 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Snap On Paddle
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Gray Actuator
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Switch Function	Actuator Material	Actuator Length [x]	Electrical Life	Voltage Rating - DC	Illumination	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Termination Style	Bushing Thread	Circuit
NKK Switches B2RKV-AH	-30 ░C	85 °C	Gray Actuator	Right Angle Through Hole Vertical	On-Mom	Nylon Polyamide (PA)	9.4 mm	50000 Cycles	28 V	Non-Illuminated	28 V	Snap On Paddle	0.4 VA	PC Pin	Unthreaded	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical
