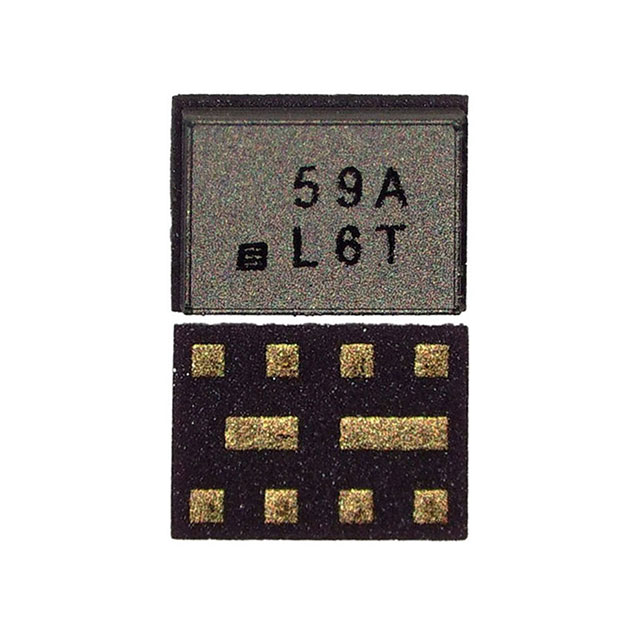

NJG1159PHH-A-TE1

Active

Nisshinbo Micro Devices Inc

GNSS FRONT-END MODULE

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

GNSS FRONT-END MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	NJG1159PHH-A-TE1

Features	2.8 V
Grade	Automotive
Package / Case	10-UFDFN Module
Qualification	AEC-Q100
RF Type	GNSS, Galileo, BeiDou, GLONASS, GPS
Supplier Device Package	10-HFFP-HH
Supplier Device Package [x]	1.5
Supplier Device Package [y]	1.1

GNSS FRONT-END MODULE

Part	Package / Case	Grade	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Qualification	RF Type	Features
Nisshinbo Micro Devices Inc NJG1159PHH-A-TE1	10-UFDFN Module	Automotive	1.5	10-HFFP-HH	1.1	AEC-Q100	BeiDou, Galileo, GLONASS, GNSS, GPS	2.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.90
	Cut Tape (CT)	1	$ 2.07
	Digi-Reel®	1	$ 2.07
	Tape & Reel (TR)	3000	$ 0.90
		6000	$ 0.87

General part information

RF Front End BeiDou, Galileo, GLONASS, GNSS, GPS 10-HFFP-HH (1.5x1.1)
