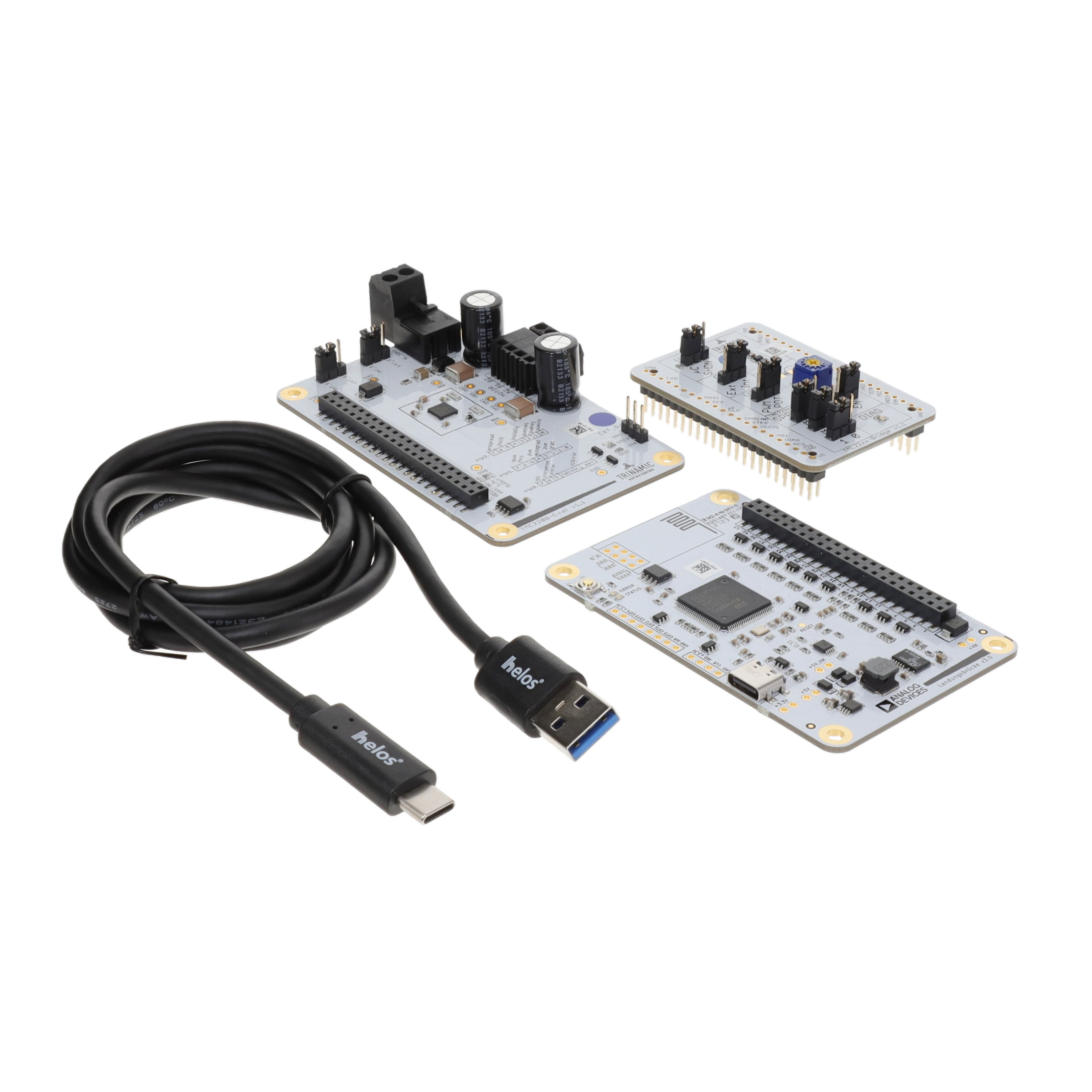

TMC2208-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC2208
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2208-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC2208
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2208-EVAL-KIT | TMC2208 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.2 A |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Logic, UART |
| Motor Type - AC, DC | - | Brushed DC |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (2), Half Bridge (4) |
| Package / Case | - | 28-VFQFN Exposed Pad |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-QFN (5x5) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2208 | TMC2208 |
| Voltage - Load | - | 5.5 V |
| Voltage - Load | - | 36 V |
| Voltage - Supply | - | 36 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.24 | |
TMC2208 Series
TMC2208 STEPPER DRIVER BOARD
| Part | Supplied Contents | Utilized IC / Part | Contents | Type | Mounting Type | Step Resolution [Max] | Step Resolution [Min] | Function | Current - Output | Package / Case | Motor Type - Stepper | Motor Type - AC, DC | Supplier Device Package | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2208SILENTSTEPSTICK | Board(s) | TMC2208 | Board(s) | Power Management | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2208-LA | Surface Mount | 1 | 0.00390625 | Driver - Fully Integrated, Control and Power Stage | 1.2 A | 28-VFQFN Exposed Pad | Bipolar | Brushed DC | 28-QFN (5x5) | General Purpose | -40 °C | 125 ¯C | Half Bridge (2) | 5.5 V | 36 V | 36 V | 5.5 V | Power MOSFET | |||||
Analog Devices Inc./Maxim Integrated TMC2208-LA-T | Surface Mount | 1 | 0.00390625 | Driver - Fully Integrated, Control and Power Stage | 1.2 A | 28-VFQFN Exposed Pad | Bipolar | 28-QFN (5x5) | General Purpose | -40 °C | 125 ¯C | Half Bridge (4) | 5.5 V | 36 V | 36 V | 5.5 V | Power MOSFET | Logic, UART | |||||
Analog Devices Inc./Maxim Integrated TMC2208-EVAL-KIT | Board(s) | TMC2208 | Board(s) | Power Management | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2208-EVAL | Board(s) | TMC2208 | Board(s) | Power Management |
Description
General part information
TMC2208 Series
TMC2208 Motor Controller/Driver, Stepper Power Management Evaluation Board
