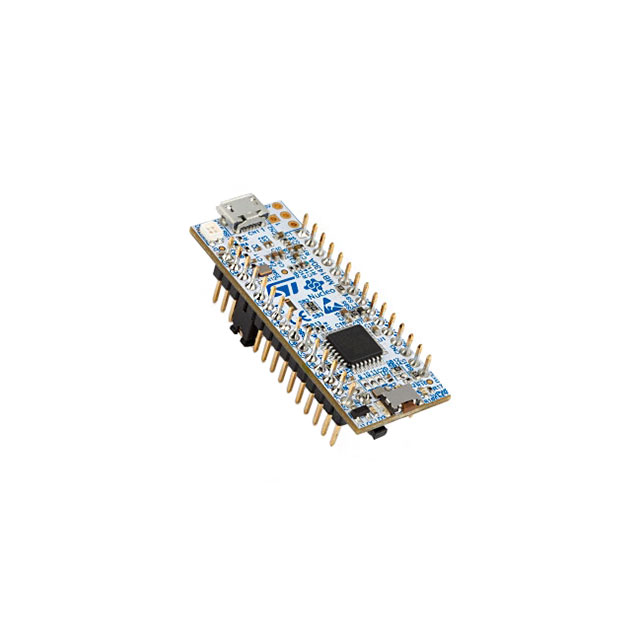

NUCLEO-G431KB
ActiveSTM32 NUCLEO-32 DEVELOPMENT BOARD WITH STM32G431KB MCU, SUPPORTS ARDUINO NANO CONNECTIVITY
Deep-Dive with AI
Search across all available documentation for this part.
NUCLEO-G431KB
ActiveSTM32 NUCLEO-32 DEVELOPMENT BOARD WITH STM32G431KB MCU, SUPPORTS ARDUINO NANO CONNECTIVITY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NUCLEO-G431KB |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M4 |
| Interconnect System | Arduino Nano |
| Mounting Type | Fixed |
| Platform | Nucleo-32 |
| Suggested Programming Environment | IAR EW, Keil MDK, GNU GCC |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32G431 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NUCLEO-G431KB Series
The STM32G431x6/x8/xB devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 170 MHz.
The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types. It also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.
These devices embed high-speed memories (up to 128 Kbytes of Flash memory, and 32 Kbytes of SRAM), an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
Documents
Technical documentation and resources
