1180L SL005

Active

ALPHA WIRE

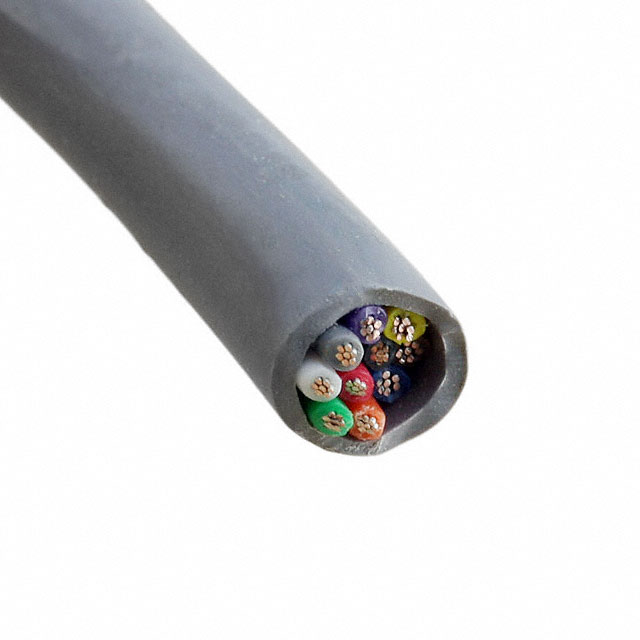

MULTICONDUCTOR UNSHIELDED CABLE, 10, 22 AWG, 0.35 MM , 7 X 0.255MM, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR UNSHIELDED CABLE, 10, 22 AWG, 0.35 MM , 7 X 0.255MM, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1180L SL005	1180L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	6.6 mm	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in	0.26 in
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	10	10
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

MULTICONDUCTOR UNSHIELDED CABLE, 10, 22 AWG, 0.35 MM , 7 X 0.255MM, 100 FT, 30.5 M

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket Color	Conductor Insulation	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length [x]	Length [x]	Voltage	Length	Length
ALPHA WIRE 1180L SL005	0.025 in	0.635 mm	22 AWG	Copper, Tinned	6.6 mm	0.26 in	10	Slate	Low Smoke Zero Halogen (LSZH)	Communication, Control	7	30 AWG	Multi-Conductor	30.5 m	100 ft	300 V
ALPHA WIRE 1180L SL001	0.025 in	0.635 mm	22 AWG	Copper, Tinned	6.6 mm	0.26 in	10	Slate	Low Smoke Zero Halogen (LSZH)	Communication, Control	7	30 AWG	Multi-Conductor			300 V	1000 ft	304.8 m
ALPHA WIRE 1180L SL002	0.025 in	0.635 mm	22 AWG	Copper, Tinned	6.6 mm	0.26 in	10	Slate	Low Smoke Zero Halogen (LSZH)	Communication, Control	7	30 AWG	Multi-Conductor	152.4 m	500 '	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
