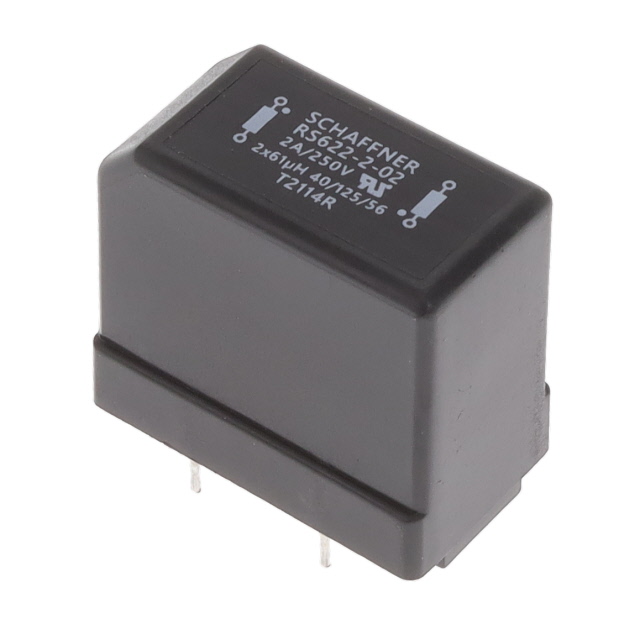

RS622-2-02

Obsolete

Schaffner EMC Inc.

LINE FILTER 250VAC 2A TH

Search across all available documentation for this part.

Obsolete

Schaffner EMC Inc.

LINE FILTER 250VAC 2A TH

Technical Specifications

Parameters and characteristics commom to parts in this series

LINE FILTER 250VAC 0.5A TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Frequency - Operating	Voltage - Rated AC	Filter Type	Configuration	Mounting Type	Current	Applications
Schaffner EMC Inc. RS622-0.5-02	125 °C	-40 °C	3600 µH	400 Hz	250 V	Single Phase	Single Stage	Through Hole	500 mA	General Purpose
Schaffner EMC Inc. RS622-1-02	125 °C	-40 °C	900 µH	400 Hz	250 V	Single Phase	Single Stage	Through Hole	1 A	General Purpose
Schaffner EMC Inc. RS622-2-02	125 °C	-40 °C	220 µH	400 Hz	250 V	Single Phase	Single Stage	Through Hole	2 A	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Phase EMC/EMI Line Filter 2 A 250V DC ~ 400Hz Single Stage
