1D5UL

Active

Altech Corporation

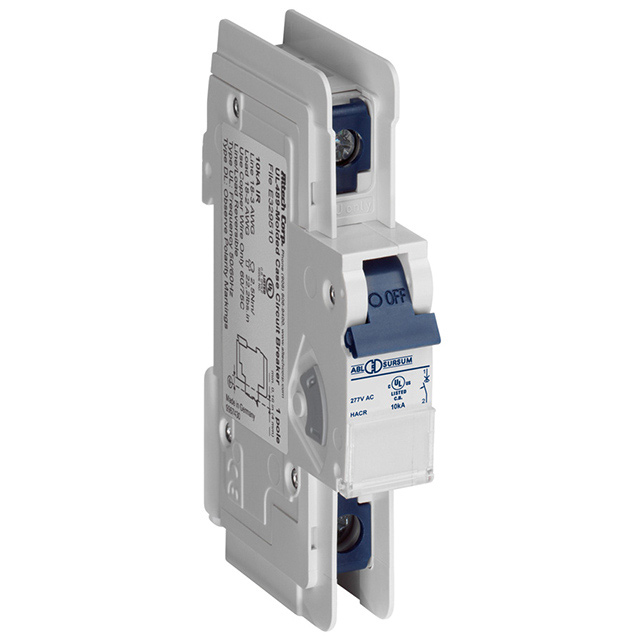

CIRCUIT BREAKER MINIATURE MOLDED CASE 1POLE 5A 277VAC

Search across all available documentation for this part.

Active

Altech Corporation

CIRCUIT BREAKER MINIATURE MOLDED CASE 1POLE 5A 277VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

1D5UM 5A CIRCUIT BREAKER D CHAR

Part	Voltage Rating - AC	Breaker Type	Number of Poles	Voltage Rating - DC	Illumination	Actuator Type	Current Rating (Amps)	Mounting Type	Approval Agency
Altech Corporation 1D5UM	480 V	Thermal Magnetic	1	42 V	None	Lever	5 A	DIN Rail	CSA, UL508, VDE
Altech Corporation 1D5DL		Thermal Magnetic	1	125 VDC	None	Lever	5 A	DIN Rail	cULus, UL489
Altech Corporation 1D5UR	277 V	Thermal Magnetic	1		None	Lever	5 A	DIN Rail	CE, cURus, UL1077
Altech Corporation 1D5UL	277 V	Thermal Magnetic	1		None	Lever	5 A	DIN Rail	CE, cULus, UL489

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circuit Breaker Thermal Magnetic 5A 277 V AC DC Lever DIN Rail
