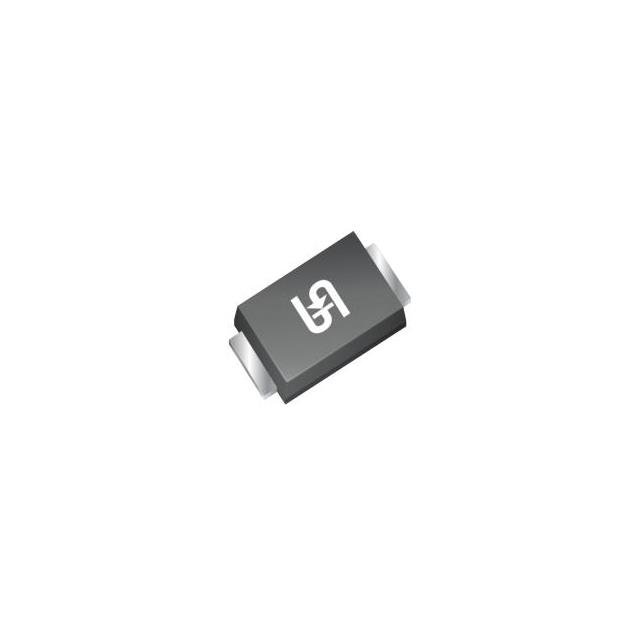

SS510FSH

Active

Taiwan Semiconductor Corporation

5A, 100V, SCHOTTKY RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

5A, 100V, SCHOTTKY RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	SS510FSH

Capacitance @ Vr, F	164 pF
Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-128
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	SOD-128
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	850 mV

Part	Qualification	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage @ Vr	Grade	Mounting Type	Supplier Device Package
Taiwan Semiconductor Corporation SS510FSH	AEC-Q101	SOD-128	100 V	150 °C	-55 °C	200 mA 500 ns	164 pF	850 mV	5 A	Schottky	10 µA	Automotive	Surface Mount	SOD-128

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 5A Surface Mount SOD-128
