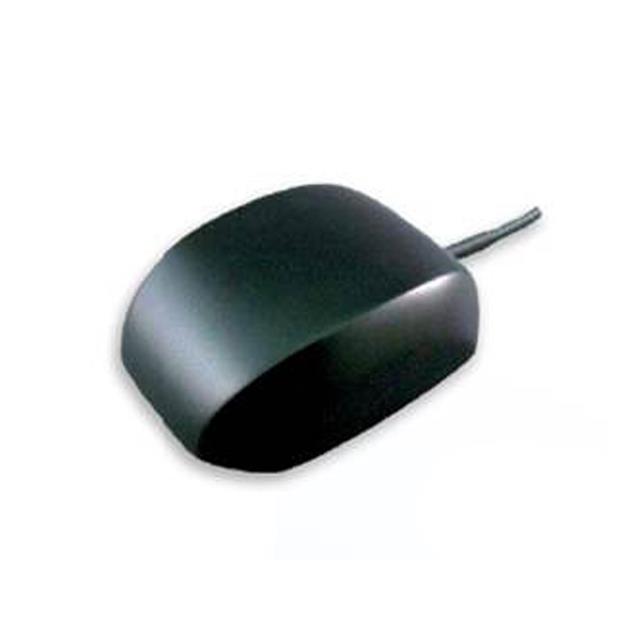

GPS15MGSMA
ActiveTE Connectivity Raychem Cable Protection
RF ANT 1.575GHZ MOD CAB ADH MAG
Deep-Dive with AI
Search across all available documentation for this part.
GPS15MGSMA
ActiveTE Connectivity Raychem Cable Protection
RF ANT 1.575GHZ MOD CAB ADH MAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GPS15MGSMA |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | 4.6 m |
| Features | Cable |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.576 GHz |
| Frequency Range [Min] | 1.574 GHz |
| Gain | 26 dBi |
| Height (Max) | 10.92 mm |
| Height (Max) [Max] | 0.43 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive, Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.11 | |
| 10 | $ 43.96 | |||
| 25 | $ 42.11 | |||
| 100 | $ 38.17 | |||
| 250 | $ 36.85 | |||
Description
General part information
GPS15 Series
Dome/Puck Antenna, Single Band, GNSS, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
