SRMM8QDW0GD02GE008V12C0

Obsolete

SolidRun LTD

SBC 1.8GHZ 4 CORE 8GB/2GB RAM

Search across all available documentation for this part.

Obsolete

SolidRun LTD

SBC 1.8GHZ 4 CORE 8GB/2GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

SBC 1.8GHZ 4 CORE 8GB/2GB RAM

Part	USB	Speed	Video Outputs	RAM Capacity/Installed	Operating Temperature [Max]	Number of Cores	Core Processor	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Digital I/O Lines	Contents	Ethernet	Cooling Type	Storage Interface	Ethernet	Expansion Site/Bus
SolidRun LTD SRMM8QDW0GD02GE008V12C0	USB 2.0 (2)	1.8 GHz	MIPI-DSI	2 GB, 8 GB	70 °C	4	ARM Cortex-A53+M4, i.MX8M Mini Quad	47 mm	1.85 in	1.18 in	30 mm	75	SD Card	10 Mbps, 100 Mbps, 1000 Mbps	Heat Sink
SolidRun LTD SRMM8QDW0GD02GE008U01CH	USB 3.0 (2)	1.8 GHz	HDMI, MIPI	2 GB, 8 GB	70 °C	4	ARM Cortex-A53+M4, i.MX8M Mini Quad	102.1 mm	4.02 in	2.72 in	69.08 mm		SD Card	2, 10, 100, 1000	Heat Sink	eMMC, microSD	RJ45	M.2, mPCIe, SIM
SolidRun LTD SRMM8QDW00D02GE008V12C0	USB 2.0, USB OTG	1.8 GHz	HDMI, MIPI	2 GB	70 °C	4		47 mm	1.85 in	1.18 in	30 mm	75	SD Card	10 Mbps, 100 Mbps, 1000 Mbps	Heat Sink	eMMC		I2C, I2S, PCIe, SPI, UART
SolidRun LTD SRMM8QDW00D02GE008R02CH	USB 2.0 (2), USB Micro (1)	1.8 GHz	HDMI, MIPI	0 GB, 2 GB	70 °C	4		100.07 mm	3.94 in	2.76 in	70.1 mm		SD Card	10, 100, 1000	Heat Sink	eMMC	RJ45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

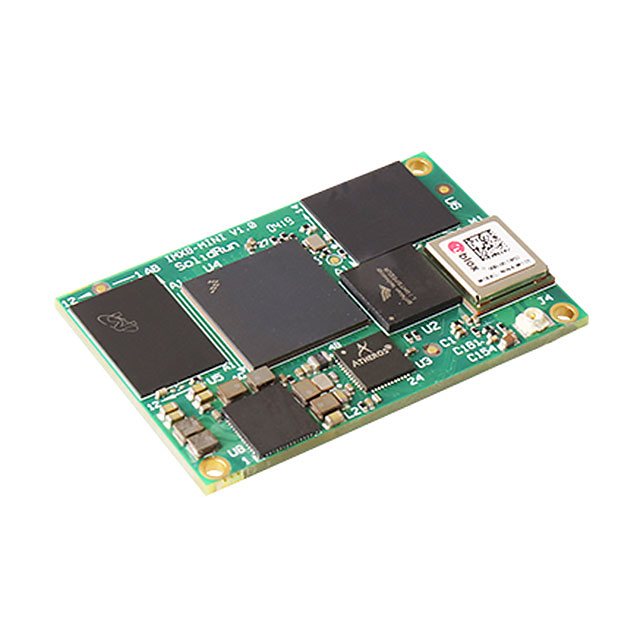

Single Board Computer 1.8GHz 4 Core 8GB/2GB RAM ARM Cortex-A53+M4, i.MX8M Mini Quad
