704.905.2

Active

EAO

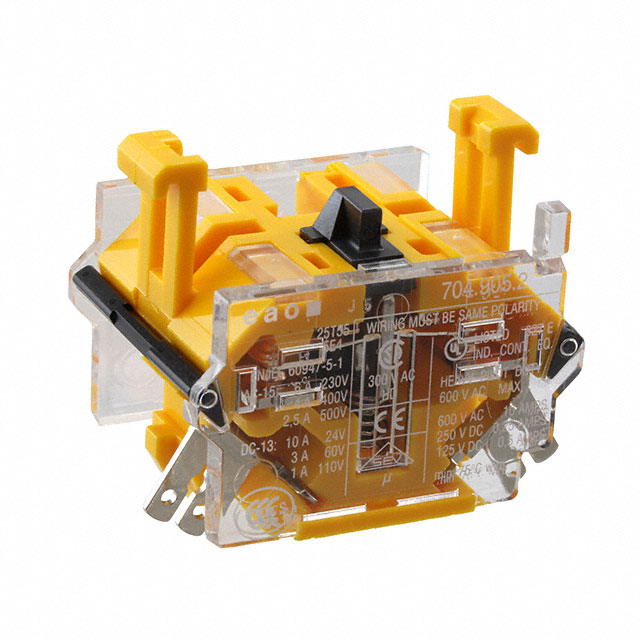

CONTACT BLOCK SPST-NC 6A 500V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK SPST-NC 6A 500V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.905.2	704.905 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Circuit	SPST-NC	SPST-NO, DPST-NC, SPST-NC
Contact Rating @ Voltage	6 A, 500 VAC	6 - 500 A
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)

CONTACT BLOCK, 6 A, 500 V, 1 POLE, QUICK CONNECT

Part	Circuit	Requires	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage	Termination Style
EAO 704.905.1	SPST-NO	Switch Body	04, EAO	6 A, 500 VAC	Quick Connect - 0.250" (6.3mm)
EAO 704.905.4	DPST-NC	Switch Body	04, EAO	6 A, 500 VAC	Quick Connect - 0.250" (6.3mm)
EAO 704.905.2	SPST-NC	Switch Body	04, EAO	6 A, 500 VAC	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NC 6A @ 500VAC

Technical documentation and resources
