MW-3/16-6"-BLACK-10-10 PC PKS

Active

HEATSHRINKMULTIWALL 3/16-6" 10PK

Search across all available documentation for this part.

Active

HEATSHRINKMULTIWALL 3/16-6" 10PK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

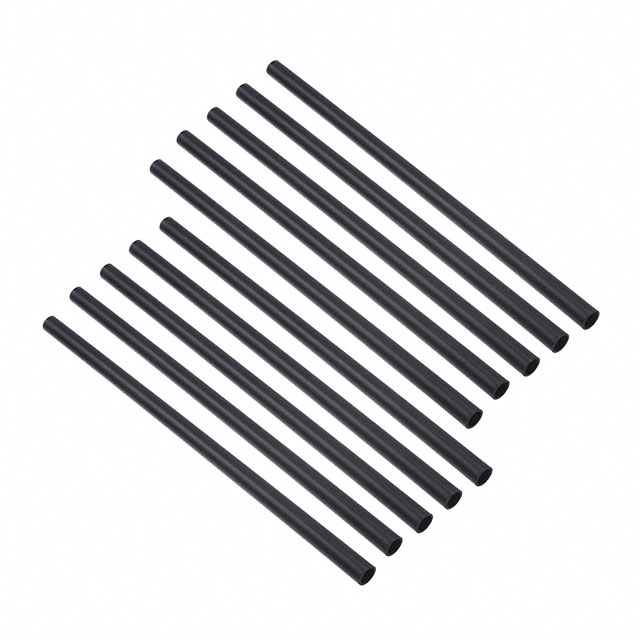

Heat Shrink Tubing, Semi Rigid 0.187" (4.75mm) 2.5 to 1 Black 0.500' (152.40mm, 6.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MW-3/16-6"-BLACK-10-10 PC PKS	MW-3/16 Series

Color	Black	Gray, Black
Features	Chemical Resistant, Adhesive Lined, Solvent Resistant	Chemical Resistant, Adhesive Lined, Solvent Resistant
Inner Diameter - Recovered [diameter]	1.52 mm	1.52 mm
Inner Diameter - Recovered [diameter]	0.06 in	0.06 in
Inner Diameter - Supplied [diameter]	4.75 mm	4.75 mm
Inner Diameter - Supplied [diameter]	0.187 in	0.187 in
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.043 in	0.043 in
Recovered Wall Thickness	1.09 mm	1.09 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	2.5	2.5
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

HEATSHRINK 3/16" GRAY

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Shrink Temperature	Color	Shelf Life Start	Shelf Life	Features	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Length	Length	Length
3M MW-3/16-48"-GRAY-250 PCS	27 °C, 80 °F	10 °C	1.22 m	4 ft	-55 °C	110 °C	4.75 mm	0.187 in	Polyolefin (PO)	0.043 in	1.09 mm	1.52 mm	0.06 in	Tubing, Semi Rigid	135 C	Gray	Date of Manufacture	120 Months	Adhesive Lined, Chemical Resistant, Solvent Resistant	2.5	1
3M MW-3/16-6"-BLACK-10-10 PC PKS	27 °C, 80 °F	10 °C			-55 °C	110 °C	4.75 mm	0.187 in	Polyolefin (PO)	0.043 in	1.09 mm	1.52 mm	0.06 in	Tubing, Semi Rigid	135 C	Black	Date of Manufacture	120 Months	Adhesive Lined, Chemical Resistant, Solvent Resistant	2.5	1	152.4 mm	6 "	0.5 '
