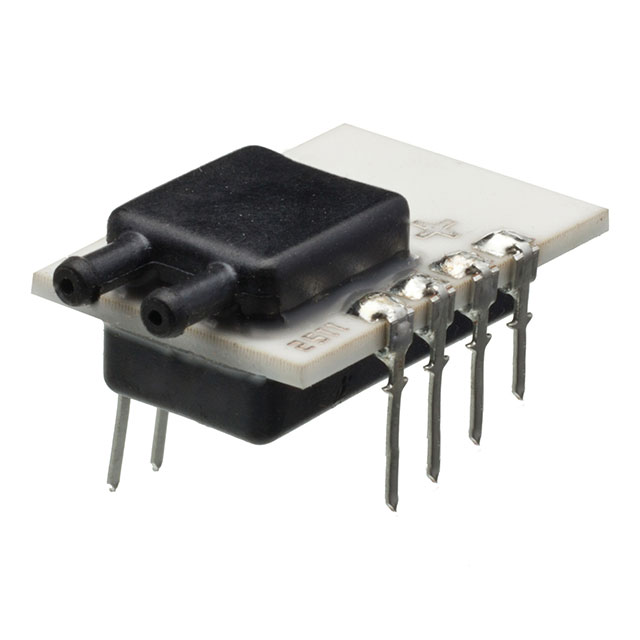

P1J-5MB-8X16PA

Active

Sensata Technologies

SENSOR 0.07PSID 0.08" 14BIT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR 0.07PSID 0.08" 14BIT

Technical Specifications

Parameters and characteristics for this part

Specification	P1J-5MB-8X16PA

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	7 kPa
Maximum Pressure	1.02 PSI
Mounting Type	Through Hole
Operating Pressure	0.07 PSI
Operating Pressure	0.5 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output	14 b
Output Type	SPI
Package / Case	Dual Ports, Same Side, 8-DIP
Package / Case	13.3 mm
Package / Case	0.524 "
Port Size	Male, Tube, Dual
Port Size [x]	1.92 mm
Port Size [x]	0.08 "
Port Style	Barbed
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Accuracy	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Operating Pressure	Operating Pressure	Package / Case	Package / Case	Package / Case	Mounting Type	Termination Style	Pressure Type	Port Style	Maximum Pressure	Maximum Pressure	Port Size	Port Size [x]	Port Size [x]
Sensata Technologies P1J-5MB-8X16PA	0.25 %	Board Mount	85 °C	-20 C	Amplified Output Temperature Compensated	14 b	2.7 V	5.5 V	SPI	0.07 PSI	0.5 kPa	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	PC Pin	Differential	Barbed	7 kPa	1.02 PSI	Dual Male Tube	1.92 mm	0.08 "
Sensata Technologies P1J-5-8X16PA	0.25 %	Board Mount	85 °C	-20 C	Amplified Output Temperature Compensated	14 b	2.7 V	5.5 V	SPI	0.18 PSI	1.25 kPa	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	PC Pin	Differential	Barbed	7 kPa	1.02 PSI	Dual Male Tube	1.92 mm	0.08 "
Sensata Technologies P1J-5-AX16PA	0.25 %	Board Mount	85 °C	-20 C	Amplified Output Temperature Compensated	14 b	2.7 V	5.5 V	Digital - I2C	0.18 PSI	1.25 kPa	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	PC Pin	Differential	Barbed	7 kPa	1.02 PSI	Dual Male Tube	1.92 mm	0.08 "
Sensata Technologies P1J-5MB-AX16PA	0.25 %	Board Mount	85 °C	-20 C	Amplified Output Temperature Compensated	14 b	2.7 V	5.5 V	Digital - I2C	0.07 PSI	0.5 kPa	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Through Hole	PC Pin	Differential	Barbed	7 kPa	1.02 PSI	Dual Male Tube	1.92 mm	0.08 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.07PSI (0.5kPa) Differential Male - 0.08" (1.92mm) Tube, Dual 14 b 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
