3403.0171.11

Active

SCHURTER Inc.

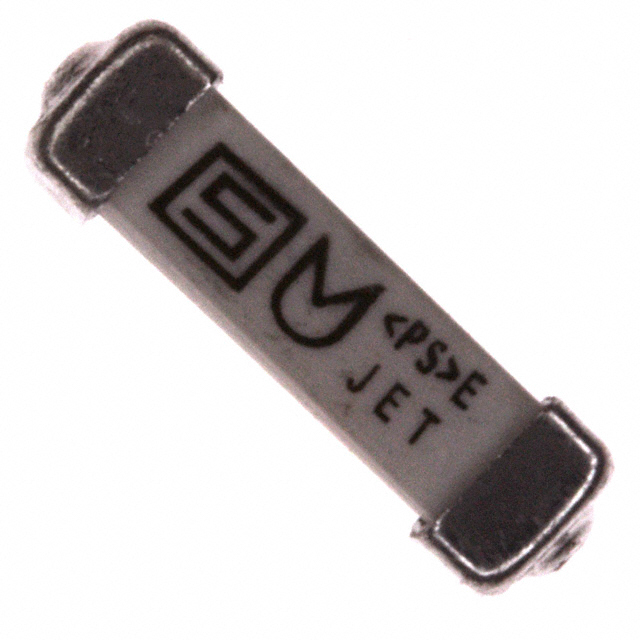

FUSE BRD MNT 3.15A 250VAC 125VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 3.15A 250VAC 125VDC

Technical Specifications

Parameters and characteristics for this part

Specification	3403.0171.11

Approval Agency	UL, PSE/JET, CQC, VDE, KC, cURus
Breaking Capacity @ Rated Voltage	200 A, 35 A
Current Rating (Amps)	3.15 A
Fuse Type	Board Mount
Melting I²t	14
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Slow Blow
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

FUSE BRD MNT 3.15A 250VAC 125VDC

Part	Response Time	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Voltage Rating - DC	Approval Agency	Fuse Type	Voltage Rating - AC	Current Rating (Amps)	Melting I²t	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 3403.0171.11	Slow Blow	2-SMD, Square End Block	-55 °C	125 °C	3 mm	10.1 mm	0.398 in	0.118 in	0.118 "	3 mm	Surface Mount	125 VDC	CQC, cURus, KC, PSE/JET, UL, VDE	Board Mount	250 V	3.15 A	14	35 A, 200 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.15 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
