PJ-038AH
ActiveCUI Devices
CONN PWR JACK 2X6.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-038AH
ActiveCUI Devices
CONN PWR JACK 2X6.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-038AH |
|---|---|
| Actual Diameter [custom] | 0.244 " |
| Actual Diameter [custom] | 2 mm |
| Actual Diameter [custom] | 0.079 " |
| Actual Diameter [custom] | 6.2 mm |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 0.083 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.1 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [custom] | 9 mm |
| Mating Length/Depth [custom] | 0.354 in |
| Mounting Feature | Flange |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.84 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.61 | |||
| 400 | $ 0.55 | |||
| 800 | $ 0.53 | |||
| 1200 | $ 0.51 | |||
| 2800 | $ 0.48 | |||
Description
General part information
PJ-038 Series

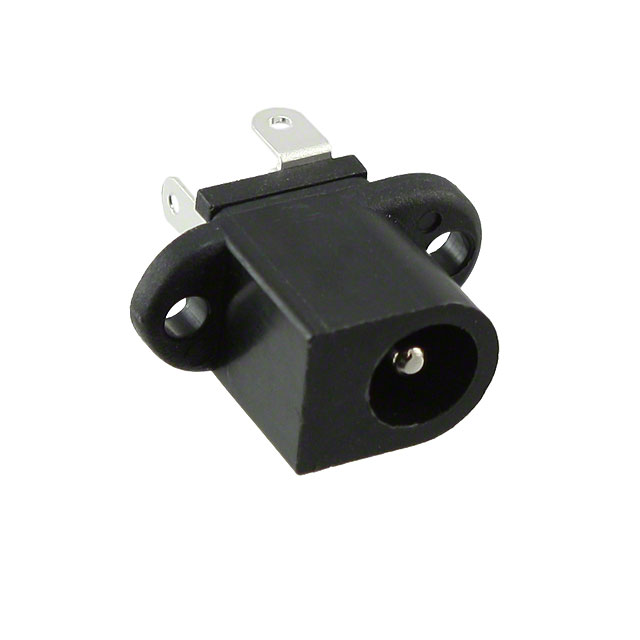

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount
