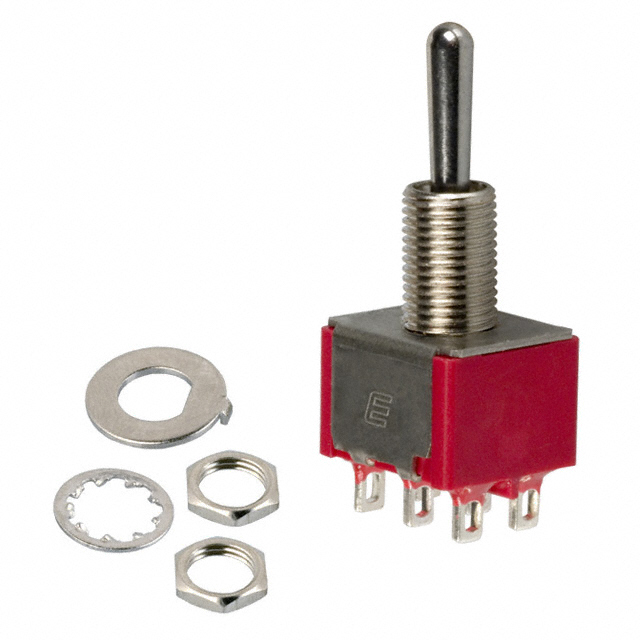

100DP4T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP4T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP4T1B1M1QEH	100DP4 Series

Actuator Length [x]	10.41 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Through Hole, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100DP4 Series

SWITCH TOGGLE DPDT 5A 120V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Current Rating (Amps)	Circuit	Actuator Length [x]	Voltage Rating - DC	Termination Style	Actuator Material	Electrical Life	Features	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Bushing Thread	Switch Function	Mounting Type
E-Switch 100DP4T6B11M2QEH	0.25 in	120 V	5 A	DPDT	12.3 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B1M6REH	0.25 in	20 V	0.4 VA	DPDT	10.41 mm	20 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom	Panel Mount, Right Angle
E-Switch 100DP4T6B11M1QEH	0.25 in	120 V	5 A	DPDT	12.3 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T5B1M51QE	0.25 in	120 V	5 A	DPDT	21.34 mm	28 V	Wire Wrap	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B4M2QE		120 V	5 A	DPDT	10.41 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	Unthreaded	Mom-Off-Mom	Through Hole
E-Switch 100DP4T1B1M1QEH	0.25 in	120 V	5 A	DPDT	10.41 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B4M7QE		120 V	5 A	DPDT	10.41 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	Unthreaded	Mom-Off-Mom	Right Angle, Through Hole, Vertical
E-Switch 100DP4T2B3M1QE	0.25 in	120 V	5 A	DPDT	5.08 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B1M53QEH	0.25 in	120 V	5 A	DPDT	10.41 mm	28 V	Wire Wrap	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T8B13M2REH	11.91 mm	20 V	0.4 VA	DPDT	18 mm	20 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	15/32-32	Mom-Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.49
		10	$ 4.01
		25	$ 3.79
		96	$ 3.49
		288	$ 3.33
		576	$ 3.04
		1056	$ 2.90

Description

General part information

100DP4 Series

Toggle Switch DPDT Panel Mount
