100DP4T6B11M2QEH

Active

E-Switch

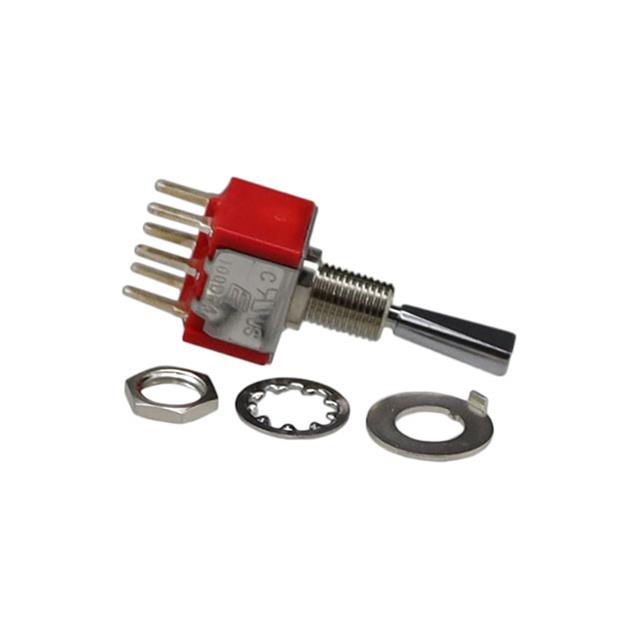

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP4T6B11M2QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.46
		10	$ 4.72
		25	$ 4.45
		96	$ 4.08
		192	$ 3.90
		288	$ 3.80
		576	$ 3.63
		1056	$ 3.50

Description

General part information

100DP4 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP4T6B11M2QEH	100DP4 Series

Actuator Length [x]	12.3 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Flat Anti-Rotation	Flat Anti-Rotation, Standard Round
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Through Hole, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	PC Pin	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100DP4 Series

SWITCH TOGGLE DPDT 5A 120V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Current Rating (Amps)	Circuit	Actuator Length [x]	Voltage Rating - DC	Termination Style	Actuator Material	Electrical Life	Features	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Bushing Thread	Switch Function	Mounting Type
E-Switch 100DP4T6B11M2QEH	0.25 in	120 V	5 A	DPDT	12.3 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B1M6REH	0.25 in	20 V	0.4 VA	DPDT	10.41 mm	20 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom	Panel Mount, Right Angle
E-Switch 100DP4T6B11M1QEH	0.25 in	120 V	5 A	DPDT	12.3 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T5B1M51QE	0.25 in	120 V	5 A	DPDT	21.34 mm	28 V	Wire Wrap	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Flat Anti-Rotation	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B4M2QE		120 V	5 A	DPDT	10.41 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	Unthreaded	Mom-Off-Mom	Through Hole
E-Switch 100DP4T1B1M1QEH	0.25 in	120 V	5 A	DPDT	10.41 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B4M7QE		120 V	5 A	DPDT	10.41 mm	28 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	Unthreaded	Mom-Off-Mom	Right Angle, Through Hole, Vertical
E-Switch 100DP4T2B3M1QE	0.25 in	120 V	5 A	DPDT	5.08 mm	28 V	Solder Lug	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T1B1M53QEH	0.25 in	120 V	5 A	DPDT	10.41 mm	28 V	Wire Wrap	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	1/4-40	Mom-Off-Mom
E-Switch 100DP4T8B13M2REH	11.91 mm	20 V	0.4 VA	DPDT	18 mm	20 V	PC Pin	Brass, Chrome Plated	40000 Cycles	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	Standard Round	15/32-32	Mom-Off-Mom
