SFML-145-01-S-D
ActiveSamtec Inc.

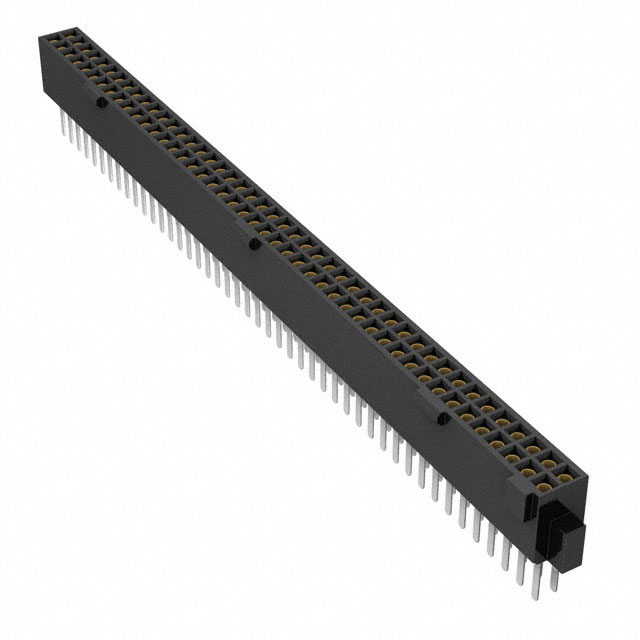

CONN RCPT 90POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SFML-145-01-S-D
ActiveSamtec Inc.
CONN RCPT 90POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFML-145-01-S-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.2 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 90 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VAC |
SFML-145 Series
| Part | Fastening Type | Number of Rows | Voltage Rating | Mounting Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Type | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Number of Positions Loaded | Style | Connector Type | Number of Positions | Insulation Color | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Surface Mount | Gold | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Board Guide | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.185 in | 4.7 mm | 3.2 A | ||
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Surface Mount | Gold | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.185 in | 4.7 mm | 3.2 A | |||
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Through Hole | Gold | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Board Guide | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.18 " | 4.57 mm | 3.2 A | 0.12 in | 3.05 mm |
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Through Hole | Gold | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.18 " | 4.57 mm | 3.2 A | 0.12 in | 3.05 mm | |
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Surface Mount | Gold | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Board Guide | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.185 in | 4.7 mm | 3.2 A | ||
Samtec Inc. | Locking Ramp | 2 | 250 VAC | Surface Mount | Gold | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Square | Female Socket | UL94 V-0 | Solder | -55 °C | 125 °C | Solder Retention | Tin | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Board to Board Cable | Receptacle | 90 | Black | 0.185 in | 4.7 mm | 3.2 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.09 | |
| 10 | $ 19.97 | |||
| 25 | $ 19.22 | |||
| 50 | $ 18.75 | |||
| 100 | $ 17.48 | |||
Description
General part information
SFML-145 Series
90 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
