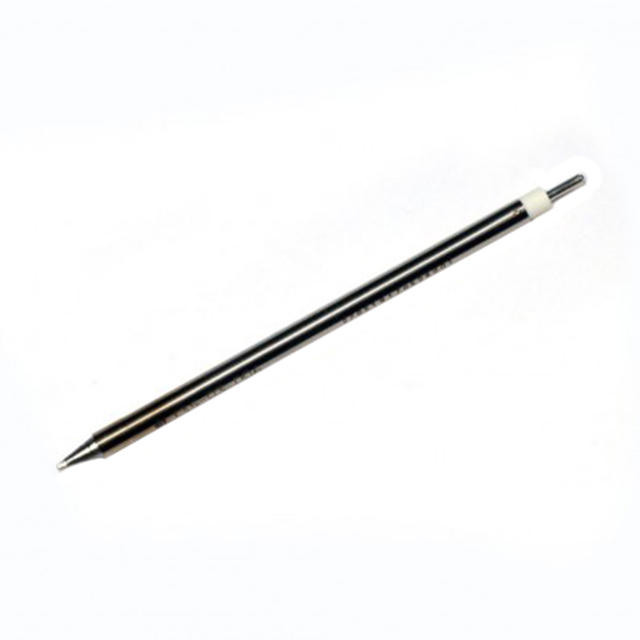

T35-03D06

Active

American Hakko Products, Inc.

MICRO CHISEL TIP FOR USE WITH FX

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

MICRO CHISEL TIP FOR USE WITH FX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T35-03D06	T35-0 Series

For Use With/Related Products	FX-1002	FX-1002
Height [z]	0.2 mm	0.2 - 2.03 mm
Height [z]	0.008 in	0.008 - 0.08 in
Length	-	0.25 in
Length	-	0.25 in
Temperature Range	350 °C	350 - 400 °C
Tip Shape	Chisel	Chisel, Knife
Tip Type	Soldering	Soldering
Width	-	0.04 in
Width	-	1.02 mm
Width [x]	0.51 mm	0.51 - 1.5 mm
Width [x]	0.02 in	0.02 - 0.06 in

MICRO CHISEL TIP FOR USE WITH FX

Part	For Use With/Related Products	Tip Shape	Width [x]	Width [x]	Height [z]	Height [z]	Tip Type	Temperature Range	Length	Length	Width [y]	Width
American Hakko Products, Inc. T35-03D06	FX-1002	Chisel	0.51 mm	0.02 in	0.2 mm	0.008 in	Soldering	350 °C
American Hakko Products, Inc. T35-02KU	FX-1002	Knife	1.5 mm	0.06 in	2.03 mm	0.08 in	Soldering	400 °C	0.25 in	0.25 in
American Hakko Products, Inc. T35-02D1	FX-1002	Chisel			0.2 mm	0.008 in	Soldering	400 °C			0.04 in	1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MICRO CHISEL TIP FOR USE WITH FX
