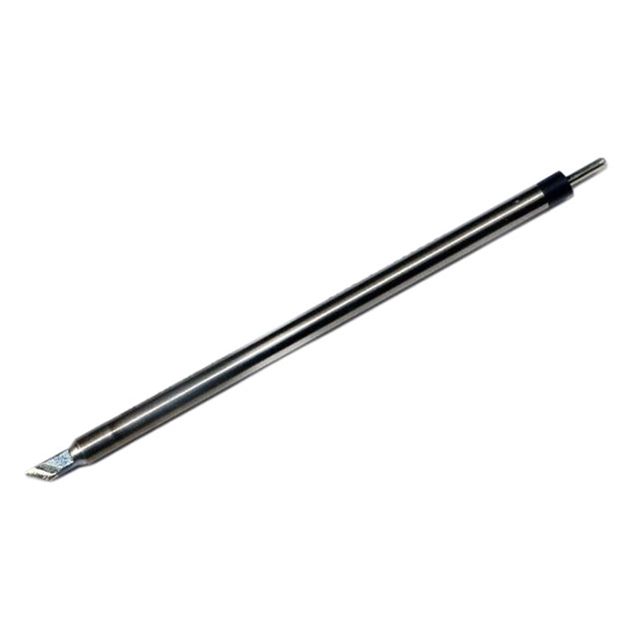

T35-02KU

Active

American Hakko Products, Inc.

MICRO KNIFE TIP FOR USE WITH FX-

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

MICRO KNIFE TIP FOR USE WITH FX-

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MICRO KNIFE TIP FOR USE WITH FX-

Technical documentation and resources

Specification	T35-02KU	T35-0 Series

For Use With/Related Products	FX-1002	FX-1002
Height [z]	0.08 in	0.008 - 0.08 in
Height [z]	2.03 mm	0.2 - 2.03 mm
Length	0.25 in	0.25 in
Length	0.25 in	0.25 in
Temperature Range	400 °C	350 - 400 °C
Tip Shape	Knife	Chisel, Knife
Tip Type	Soldering	Soldering
Width	-	0.04 in
Width	-	1.02 mm
Width [x]	1.5 mm	0.51 - 1.5 mm
Width [x]	0.06 in	0.02 - 0.06 in

Part	For Use With/Related Products	Tip Shape	Width [x]	Width [x]	Height [z]	Height [z]	Tip Type	Temperature Range	Length	Length	Width [y]	Width
American Hakko Products, Inc. T35-03D06	FX-1002	Chisel	0.51 mm	0.02 in	0.2 mm	0.008 in	Soldering	350 °C
American Hakko Products, Inc. T35-02KU	FX-1002	Knife	1.5 mm	0.06 in	2.03 mm	0.08 in	Soldering	400 °C	0.25 in	0.25 in
American Hakko Products, Inc. T35-02D1	FX-1002	Chisel			0.2 mm	0.008 in	Soldering	400 °C			0.04 in	1.02 mm
