8ES8-1AA21-0.75

Obsolete

3M (TC)

CABLE SLIMLINE SAS M-M 750MM

Search across all available documentation for this part.

Obsolete

3M (TC)

CABLE SLIMLINE SAS M-M 750MM

Technical Specifications

Parameters and characteristics for this part

Part	Usage	Number of Positions	Connector Type	Fastening Type	Cable Type	Gender	Shielding	Cable Connectors	Color	Wire Gauge	Length [x]	Length [x]	Features
3M (TC) 8ES8-1DD21-0.50	Internal	74	Plug to Plug	Latch Lock Push-Pull	Flat Twin Axial	Male to Male	Shielded	Slimline SAS	Silver	31 AWG	1.64 ft	500 mm
3M (TC) 8ES8-1AA21-0.75	Internal	74	Plug to Plug	Latch Lock Push-Pull	Flat Twin Axial	Male to Male	Shielded	Slimline SAS	Silver	30 AWG	2.46 ft	0.75 m	Sidebands on Cable
3M (TC) 8ES8-1DD21-0.75	Internal	74	Plug to Plug	Latch Lock Push-Pull	Flat Twin Axial	Male to Male	Shielded	Slimline SAS	Silver	31 AWG	2.46 ft	0.75 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

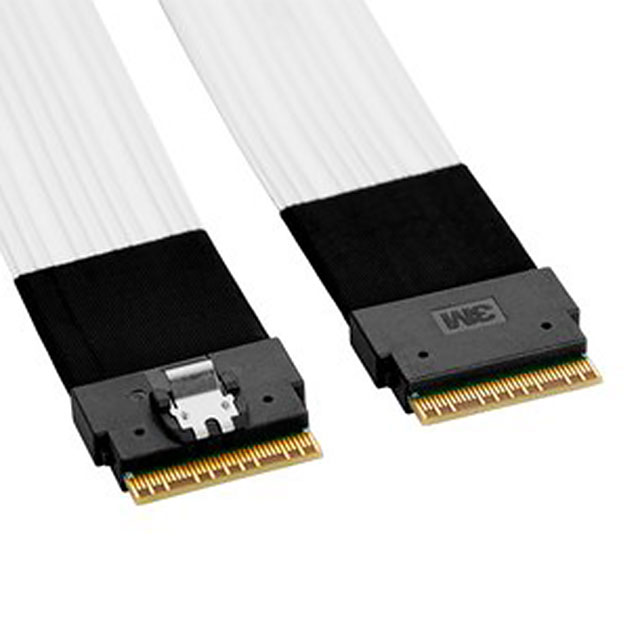

74 Position Slimline SAS Plug to Plug 2.46' (750.00mm) Silver Shielded

Technical documentation and resources
