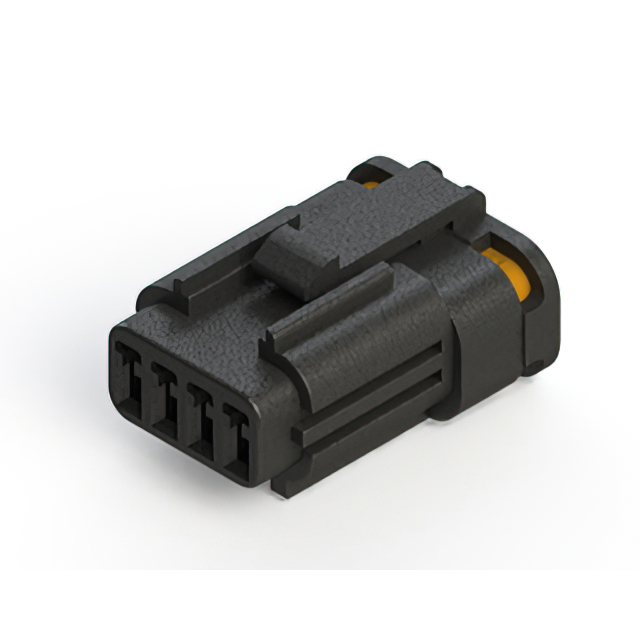

566-004-000-811

Active

EDAC Inc.

CONN RCPT HSG 4POS 2.00MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 4POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	566-004-000-811

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof (Mated, IP67)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Contact Type	Mounting Type	Insulation Material	Connector Type	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Features	Fastening Type	Pitch [x]	Pitch [x]	Contact Termination
EDAC Inc. 566-004-000-810	Female Socket	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	1	Contacts Not Included	-40 °C	105 ░C	4	Black	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp
EDAC Inc. 566-004-000-811	Female Socket	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	1	Contacts Not Included	-40 °C	105 ░C	4	Black	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp
EDAC Inc. 566-004-000-710	Male Pin	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Plug	1	Contacts Not Included	-40 °C	105 ░C	4	Black	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 3.39

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
