Description
General part information
ADM00804 Series

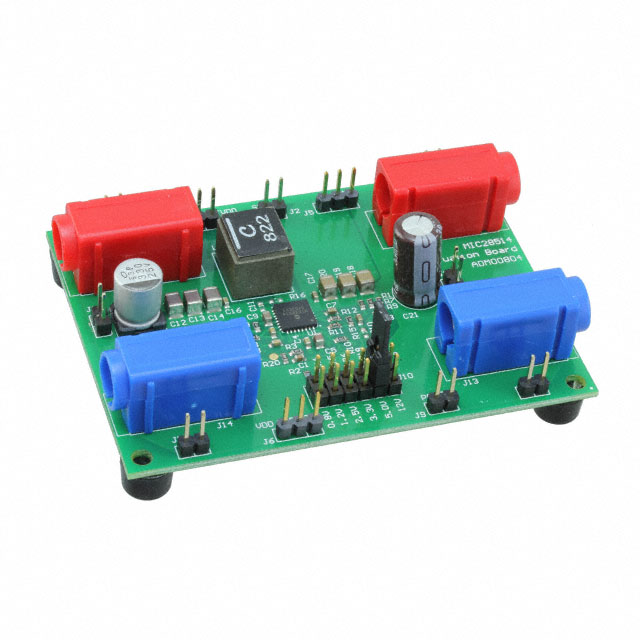

MIC28514 Hyper Speed Control® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | ADM00804 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 5 A |
| Frequency - Switching | 300 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | MIC28514 |
| Voltage - Input (Maximum) | 75 V |
| Voltage - Input (Minimum) | 10 V |
| Voltage - Output | 5 VDC |
