AZ35229
ObsoletePanasonic Industrial Automation Sales
SWITCH SNAP ACTION SPDT 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.

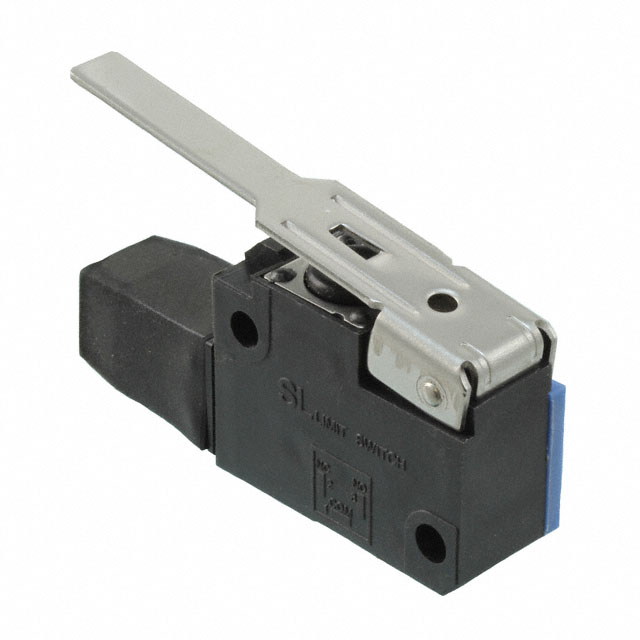

AZ35229
ObsoletePanasonic Industrial Automation Sales
SWITCH SNAP ACTION SPDT 4A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ35229 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A |
| Differential Travel | 1.5 mm |
| Differential Travel | 0.06 " |
| Electrical Life | 100000 Cycles |
| Features | Terminal Cover |
| Ingress Protection | IP60 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 200 gf |
| Operating Position | 0.657 in |
| Operating Position | 16.7 mm |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Overtravel | 0.235 in |
| Overtravel | 6 mm |
| Pretravel | 0.12 in |
| Pretravel | 3 mm |
| Release Force | 50 gf |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AZ3522 Series
