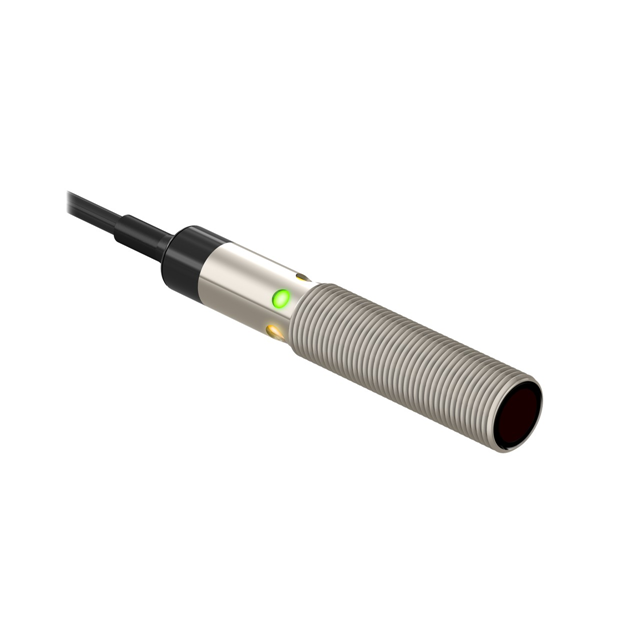

M12NFF50Q5
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSORS M12 SERIES: FIXED FIELD (RED); RANGE: 50 MM; INPUT 10-30 V DC; OUTPUT: COMPLEMENTARY SOLID-STATE NPN; 150 MM (6 IN) M12 PIGTAIL QD
M12NFF50Q5
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSORS M12 SERIES: FIXED FIELD (RED); RANGE: 50 MM; INPUT 10-30 V DC; OUTPUT: COMPLEMENTARY SOLID-STATE NPN; 150 MM (6 IN) M12 PIGTAIL QD
Description
General part information
M12NFF50 Series
Optical Sensor 0.98" (25mm) NPN
Technical Specifications
Parameters and characteristics for this part
| Specification | M12NFF50Q5 |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6 IEC IP67, IEC IP68, NEMA 6P, IEC, IP68, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 680 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NPN |
| Response Time | 500 µs |
| Sensing Distance | 0.98 " |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
