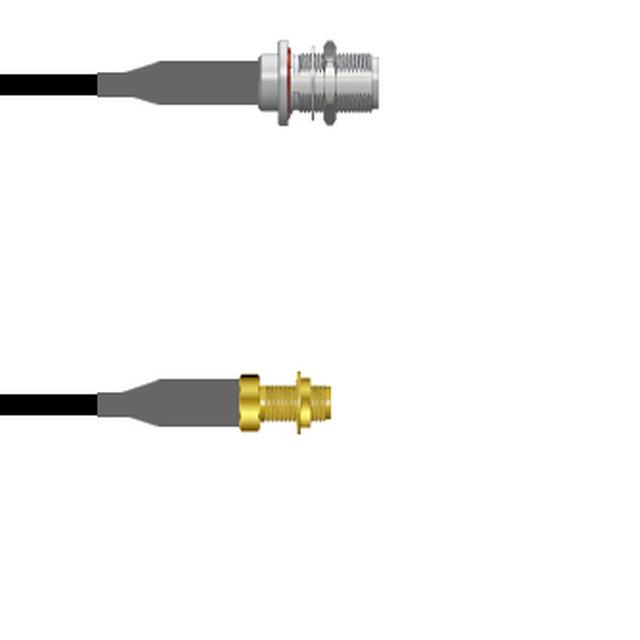

Q-1X02Y0008.75M

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 29.5"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X02Y0008.75M

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 29.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X02Y0008.75M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1X02Y0 Series

Part	1st Contact Gender	1st Connector	Frequency - Max [Max]	2nd Contact Gender	Length	Length	Color	Style	2nd Connector	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Feature	1st Connector Mounting Type	Overall Impedance	Features	2nd Connector Mounting Feature	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1X02Y0008036i	Female	SMA Jack	11 GHz	Female	91.44 cm	36 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1X02Y0008060i	Female	SMA Jack	11 GHz	Female	1.5 m	5 '	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	5 ft
Amphenol Custom Cable Q-1X02Y0008108i	Female	SMA Jack	11 GHz	Female	2.7 m	108 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	9 ft
Amphenol Custom Cable Q-1X02Y0008048i	Female	SMA Jack	11 GHz	Female	1200 mm	48 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	4 ft
Amphenol Custom Cable Q-1X02Y00080.5M	Female	SMA Jack	11 GHz	Female	50 cm	19.69 "	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1X02Y0008.75M	Female	SMA Jack	11 GHz	Female	750 mm	29.53 "	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1X02Y0008072i	Female	SMA Jack	11 GHz	Female	1.8 m	72 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	6 ft
Amphenol Custom Cable Q-1X02Y0008018i	Female	SMA Jack	11 GHz	Female			Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1X02Y0008006i	Female	SMA Jack	11 GHz	Female	152.4 mm	6 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1X02Y0008002M	Female	SMA Jack	11 GHz	Female	2 m	78.7 in	Black	SMA to N-Type	N-Type Jack	Panel Mount	RG-58	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 156.86
		25	$ 153.89
		50	$ 150.91
		100	$ 147.94
		250	$ 144.96

Description

General part information

Q-1X02Y0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
