97276.6

Active

Pflitsch

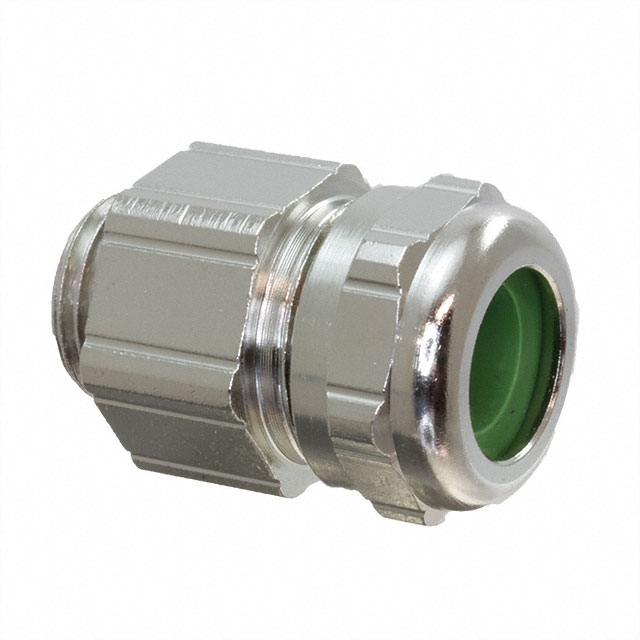

CABLE GLAND 6.86-10.41MM M16

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 6.86-10.41MM M16

Technical Specifications

Parameters and characteristics for this part

Specification	97276.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP54 - Dust Protected, Water Resistant; NEMA 13
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	0.41 in
Outside Cable Diameter (Max) [Max]	10.41 mm
Outside Cable Diameter (Min) [Min] [diameter]	6.86 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.27 in
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Includes	Thread Size	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]	Material	Thread Length	Thread Length	Ingress Protection
Pflitsch 97276.6	Sealing Ring	M16x1.5	Silver	Cable Gland	6.86 mm	0.27 in	0.41 in	10.41 mm	0.63 in	16 mm	-40 °C	300 °C	Brass Nickel Plated	0.24 in	6.1 mm	IP54 - Dust Protected Water Resistant; NEMA 13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
