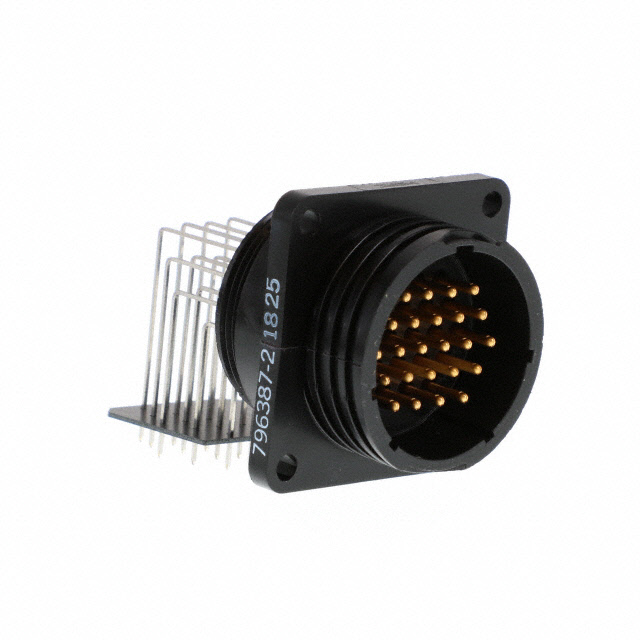

796387-2
ObsoleteTE Connectivity AMP Connectors
CONN RCPT MALE 24POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796387-2
ObsoleteTE Connectivity AMP Connectors
CONN RCPT MALE 24POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796387-2 | 796387 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold, PdNi +Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Material | Brass | Brass |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 24 | 24 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | A, Keyed |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert [Max] | 24 | 24 |
| Shell Size - Insert [Min] | 23 | 23 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
796387 Series
CONN RCPT MALE 24POS GOLD SOLDER
| Part | Contact Material | Connector Type | Mounting Type | Mounting Feature | Termination | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Finish - Mating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Primary Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Color | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-796387-2 | Brass | Male Pins, Receptacle | Panel Mount, Right Angle, Through Hole | Flange | Solder | 24 | 23 | Gold, PdNi +Gold | 24 | 30 Áin | 0.76 Ám | UL94 V-0 | Plastic | A | 105 ░C | -55 °C | 250 VAC | ||
TE Connectivity AMP Connectors 796387-2 | Brass | Male Pins, Receptacle | Panel Mount, Right Angle, Through Hole | Flange | Solder | 24 | 23 | Gold | 24 | 30 Áin | 0.76 Ám | UL94 V-0 | Plastic | Keyed | 105 ░C | -55 °C | 250 VAC | Black | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
796387 Series
24 Position Circular Connector Receptacle, Male Pins Solder
