1-796387-2

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 24POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 24POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796387-2	796387 Series

Color	-	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold, PdNi +Gold	Gold, PdNi +Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Brass	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	24	24
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A, Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert [Max]	24	24
Shell Size - Insert [Min]	23	23
Shielding	-	Unshielded
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 24POS GOLD SOLDER

Part	Contact Material	Connector Type	Mounting Type	Mounting Feature	Termination	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Primary Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Shielding
TE Connectivity AMP Connectors 1-796387-2	Brass	Male Pins, Receptacle	Panel Mount, Right Angle, Through Hole	Flange	Solder	24	23	Gold, PdNi +Gold	24	30 Áin	0.76 Ám	UL94 V-0	Plastic	A	105 ░C	-55 °C	250 VAC
TE Connectivity AMP Connectors 796387-2	Brass	Male Pins, Receptacle	Panel Mount, Right Angle, Through Hole	Flange	Solder	24	23	Gold	24	30 Áin	0.76 Ám	UL94 V-0	Plastic	Keyed	105 ░C	-55 °C	250 VAC	Black	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

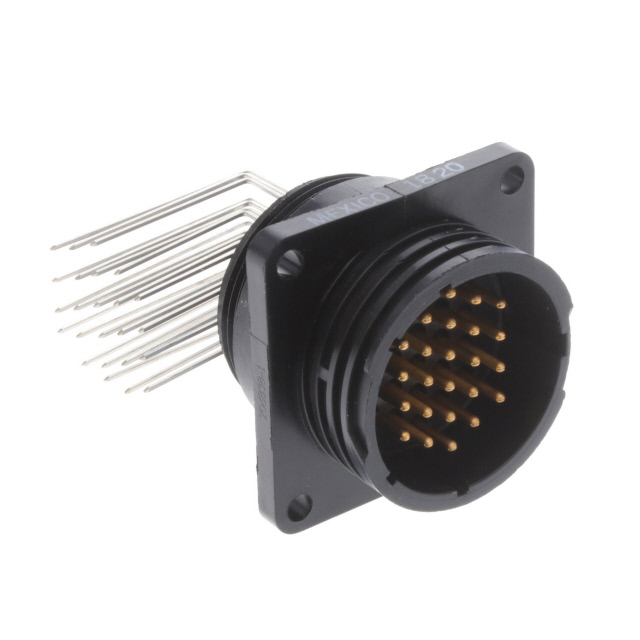

24 Position Circular Connector Receptacle, Male Pins Solder
