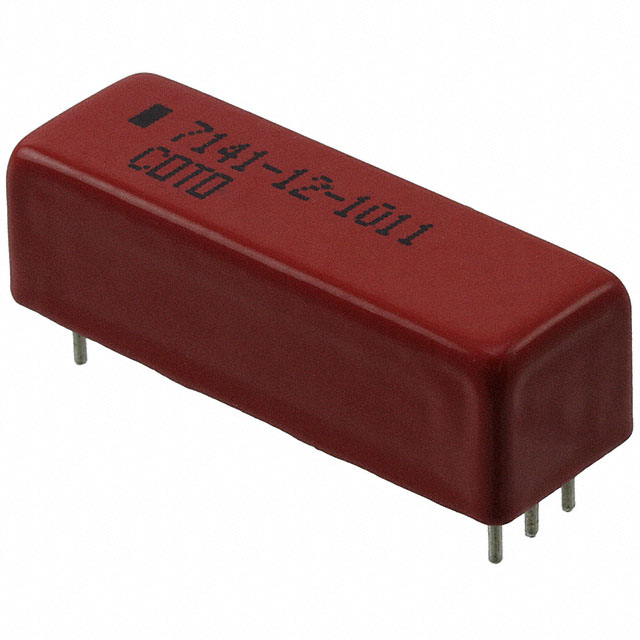

7141-12-1011

Coto Technology

RELAY REED SPDT 250MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	205	$ 19.31

Description

General part information

7141 Series

RELAY REED SPDT 250MA 12V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7141-12-1011	7141 Series

Coil Current	10.9 mA	5.7 - 28.6 mA
Coil Resistance	-	4.2 - 175 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	250 mA	250 mA
Features	Diode, Electrostatic Shield	Diode, Electrostatic Shield
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9 VDC	3.75 - 18 VDC
Must Release Voltage	1 VDC	0.4 - 2 VDC
Operate Time	2 ms	2 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	2.5 ms	2.5 ms
Switching Voltage	150 VDC, 150 VAC	150 VDC
Termination Style	PC Pin	PC Pin

7141 Series

RELAY REED SPDT 250MA 12V

Part	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Current	Contact Rating (Current)	Features	Termination Style	Contact Form	Operate Time	Coil Type	Switching Voltage	Coil Voltage	Release Time	Mounting Type	Coil Resistance
Coto Technology 7141-12-1001	1 VDC	85 °C	-20 C	9 VDC	10.9 mA	250 mA	Diode	PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	12 VDC	2.5 ms	Through Hole
Coto Technology 7141-12-1100	1 VDC	85 °C	-20 C	9 VDC	10.9 mA	250 mA		PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	12 VDC	2.5 ms	Through Hole
Coto Technology 7141-12-1010	1 VDC	85 °C	-20 C	9 VDC	10.9 mA	250 mA	Electrostatic Shield	PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	12 VDC	2.5 ms	Through Hole
Coto Technology 7141-24-1100	2 VDC	85 °C	-20 C	18 VDC	5.7 mA	250 mA		PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	24 VDC	2.5 ms	Through Hole	4.2 kOhms
Coto Technology 7141-12-1011	1 VDC	85 °C	-20 C	9 VDC	10.9 mA	250 mA	Diode, Electrostatic Shield	PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	12 VDC	2.5 ms	Through Hole
Coto Technology 7141-05-1010	0.4 VDC	85 °C	-20 C	3.75 VDC	28.6 mA	250 mA	Electrostatic Shield	PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	5 VDC	2.5 ms	Through Hole	175 Ohms
Coto Technology 7141-12-1000	1 VDC	85 °C	-20 C	9 VDC	10.9 mA	250 mA		PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	12 VDC	2.5 ms	Through Hole
Coto Technology 7141-05-1011	0.4 VDC	85 °C	-20 C	3.75 VDC	28.6 mA	250 mA	Diode, Electrostatic Shield	PC Pin	SPDT (1 Form C)	2 ms	Non Latching	150 VDC, 150 VAC	5 VDC	2.5 ms	Through Hole	175 Ohms
