1-111492-5
ActiveTE Connectivity AMP Connectors

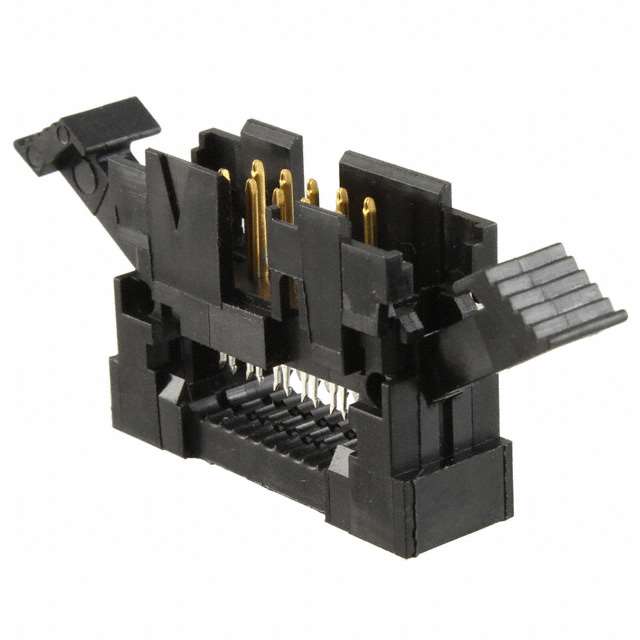

CONN PLUG 10P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1-111492-5
ActiveTE Connectivity AMP Connectors
CONN PLUG 10P IDC 26-28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-111492-5 | 111492 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Polarizing Key, Feed Through | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 - 50 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.99 | |
| 10 | $ 11.04 | |||
| 25 | $ 10.34 | |||
| 60 | $ 9.72 | |||
| 120 | $ 9.26 | |||
| 300 | $ 8.68 | |||
| 540 | $ 8.33 | |||
| 1020 | $ 7.96 | |||
111492 Series
CONN PLUG 30P IDC 26-28AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Type | Row Spacing [x] | Row Spacing | Mounting Type | Wire Type | Features | Color | Contact Finish | Number of Rows | Number of Positions | Cable Termination | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-111492-1 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Male Pin | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Ribbon Cable | Feed Through, Polarizing Key | Black | Gold | 2 | 30 | IDC | Plug | Latch Lock/Eject Hooks |
TE Connectivity AMP Connectors 1-111492-5 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Male Pin | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Ribbon Cable | Feed Through, Polarizing Key | Black | Gold | 2 | 10 | IDC | Plug | Latch Lock/Eject Hooks |
TE Connectivity AMP Connectors 1-111492-9 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Male Pin | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Ribbon Cable | Feed Through, Polarizing Key | Black | Gold | 2 | 24 | IDC | Plug | Latch Lock/Eject Hooks |
TE Connectivity AMP Connectors 2-111492-2 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Male Pin | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Ribbon Cable | Feed Through, Polarizing Key | Black | Gold | 2 | 34 | IDC | Plug | Latch Lock/Eject Hooks |
TE Connectivity AMP Connectors 2-111492-5 | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Male Pin | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Ribbon Cable | Feed Through, Polarizing Key | Black | Gold | 2 | 50 | IDC | Plug | Latch Lock/Eject Hooks |
Description
General part information
111492 Series
10 Position Rectangular Plug Connector IDC Gold 26-28 AWG
