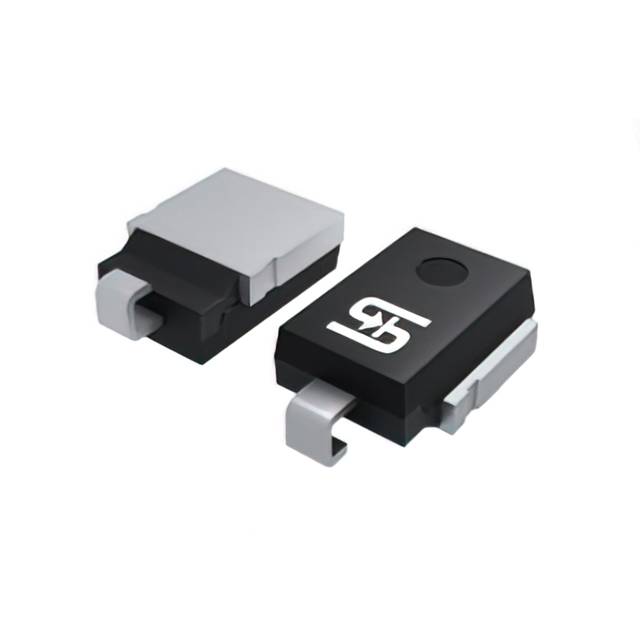

TLD8S26AH

Active

Taiwan Semiconductor Corporation

6600W, 30.4V, 5%, UNIDIRECTIONAL, TVS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

6600W, 30.4V, 5%, UNIDIRECTIONAL, TVS

Technical Specifications

Parameters and characteristics for this part

Specification	TLD8S26AH

Current - Peak Pulse (10/1000µs)	157 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DO-218AB
Power - Peak Pulse	6600 W
Power - Peak Pulse	6.6 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-218AB
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	28.9 V
Voltage - Clamping (Max) @ Ipp [Max]	42.1 V
Voltage - Reverse Standoff (Typ)	26 V

Part	Type	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Power - Peak Pulse	Qualification	Voltage - Clamping (Max) @ Ipp [Max]	Grade	Mounting Type	Voltage - Reverse Standoff (Typ)
Taiwan Semiconductor Corporation TLD8S26AH	Zener		-55 °C	175 ░C	DO-218AB	157 A	DO-218AB	1	28.9 V	6600 W	6.6 kW	AEC-Q101	42.1 V	Automotive	Surface Mount	26 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

42.1V Clamp 157A Ipp Tvs Diode Surface Mount DO-218AB
