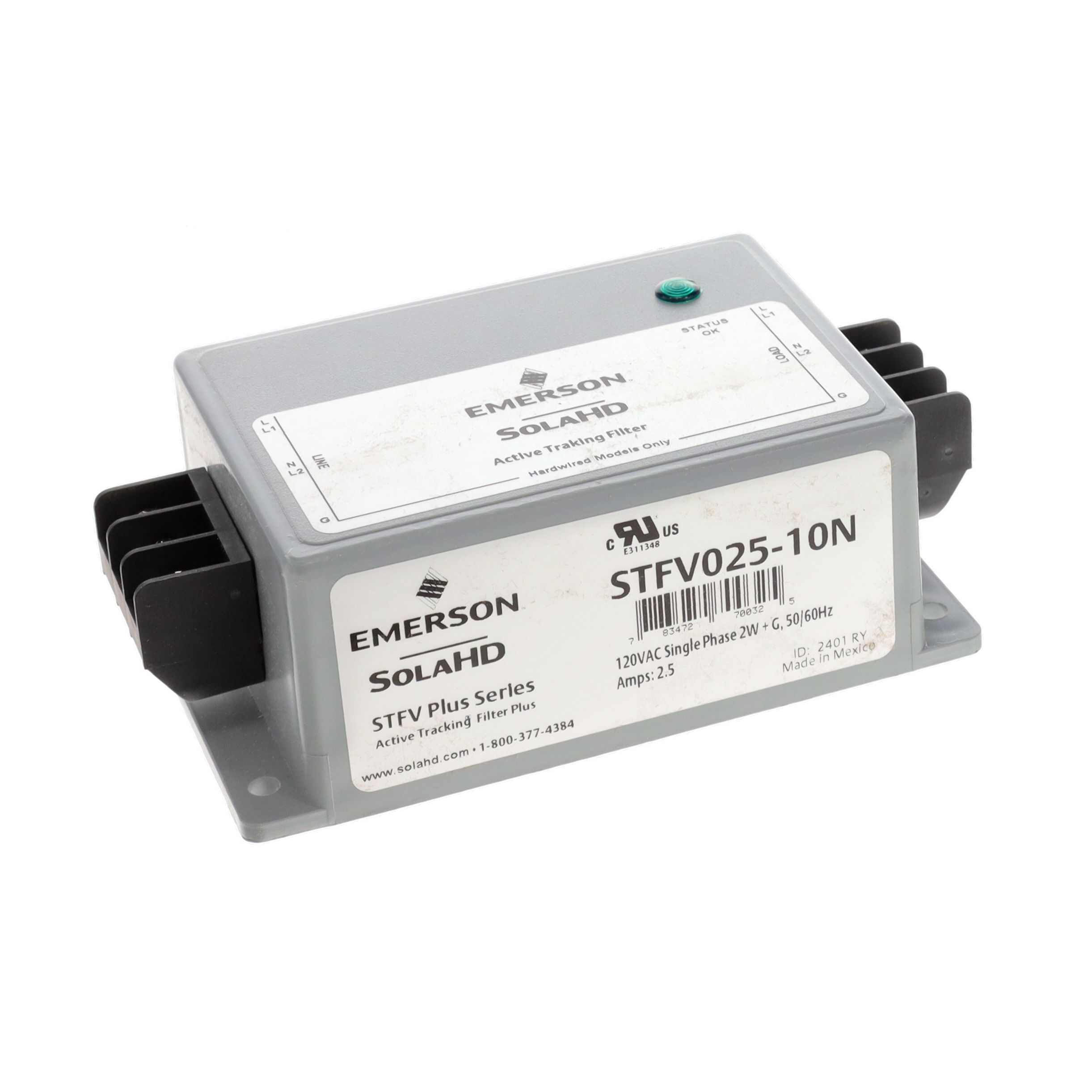

STFV025-10N
ActiveSolaHD
SURGE PROTECTOR, ACTIVE TRACKING, MAINS SURGE PROTECTOR, 2 POLE, 25 KA, 120 VAC, PANEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
STFV025-10N
ActiveSolaHD
SURGE PROTECTOR, ACTIVE TRACKING, MAINS SURGE PROTECTOR, 2 POLE, 25 KA, 120 VAC, PANEL
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | STFV025-10N |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, cURus |
| Configuration | Single Stage |
| Current | 2.5 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STFV025 Series
Single Phase EMC/EMI Line Filter 2.5 A 50/60Hz Single Stage Terminal Block
