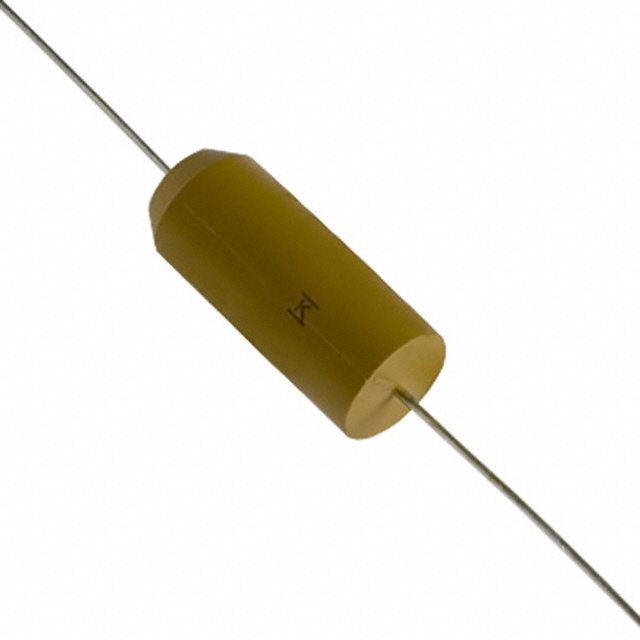

T322F156K050AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 15UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 15UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	T322F156K050AT

Capacitance	15 µF
ESR (Equivalent Series Resistance)	1200 mOhm
Features	General Purpose
Manufacturer Size Code	F
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	7.62 mm
Size / Dimension [diameter]	0.3 in
Size / Dimension [x]	0.71 "
Size / Dimension [x]	18.03 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

Part	Tolerance	Features	Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	ESR (Equivalent Series Resistance)	Voltage - Rated	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Capacitance
KEMET T322F337K006AT	10 %	General Purpose	Molded	F	-55 °C	125 °C	Through Hole	700 mOhm	6 VDC	Axial	0.71 "	7.62 mm	18.03 mm	0.3 in	330 µF
KEMET T322F156K050AT	10 %	General Purpose	Molded	F	-55 °C	125 °C	Through Hole	1200 mOhm	50 VDC	Axial	0.71 "	7.62 mm	18.03 mm	0.3 in	15 µF
KEMET T322F337K006AS	10 %	General Purpose	Molded	F	-55 °C	125 °C	Through Hole	700 mOhm	6 VDC	Axial	0.71 "	7.62 mm	18.03 mm	0.3 in	330 µF
KEMET T322F476K035AS	10 %	General Purpose	Molded	F	-55 °C	125 °C	Through Hole	800 mOhm	35 V	Axial	0.71 "	7.62 mm	18.03 mm	0.3 in	47 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 µF Molded Tantalum Capacitors 50 V Axial 1.2Ohm
