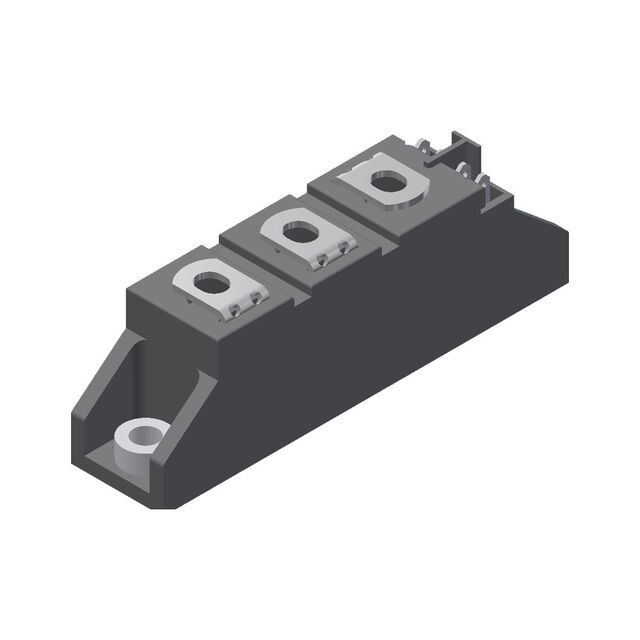

MDMA35P1600TG

Active

IXYS

DIODE MOD GP 1600V 35A TO-240AA

Search across all available documentation for this part.

Active

IXYS

DIODE MOD GP 1600V 35A TO-240AA

Technical Specifications

Parameters and characteristics for this part

Specification	MDMA35P1600TG

Current - Average Rectified (Io) (per Diode)	35 A
Current - Reverse Leakage @ Vr	40 µA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-240AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-240AA
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.16 V

Part	Current - Reverse Leakage @ Vr	Technology	Diode Configuration	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Speed	Speed
IXYS MDMA35P1600TG	40 µA	Standard	1 Pair Series Connection	TO-240AA	Chassis Mount	150 °C	-40 °C	35 A	TO-240AA	1.16 V	Standard Recovery >500ns	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	36	$ 17.35

General part information

Diode Array 1 Pair Series Connection 1600 V 35A Chassis Mount TO-240AA

Technical documentation and resources
