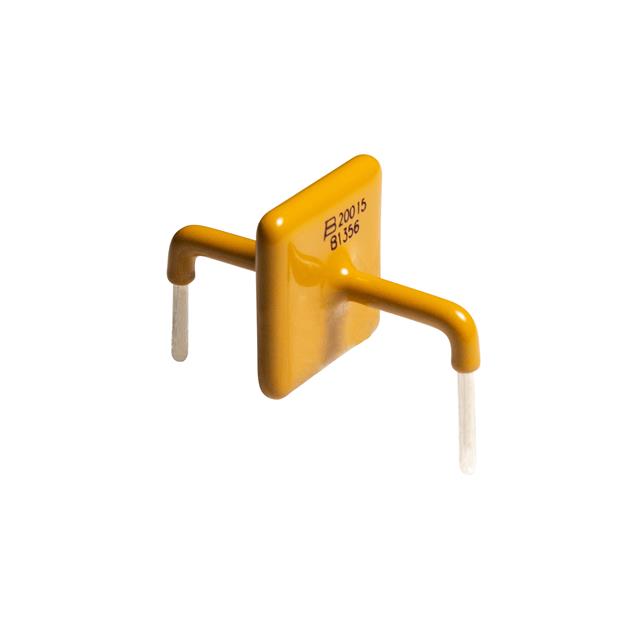

PTVS20-015C-TH

Active

Bourns Inc.

TVS DIODE 15VWM 44VC AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 15VWM 44VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS20-015C-TH

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	38700 pF
Current - Peak Pulse (10/1000µs)	20 kA
Current - Peak Pulse (10/1000µs)	20000 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.5 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	16 V
Voltage - Clamping (Max) @ Ipp	44 V
Voltage - Reverse Standoff (Typ)	15 V

Part	Voltage - Reverse Standoff (Typ)	Power Line Protection	Supplier Device Package	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Package / Case	Package / Case	Voltage - Clamping (Max) @ Ipp	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Breakdown (Min) [Min]
Bourns Inc. PTVS20-015C-TH	15 V		Axial	1	20 kA	20000 A	38700 pF	Axial Right Angle Bend	24.5 mm	44 V	Zener	125 ¯C	-55 °C	Through Hole	General Purpose	16 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44V (Typ) Clamp 20000A (20kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
