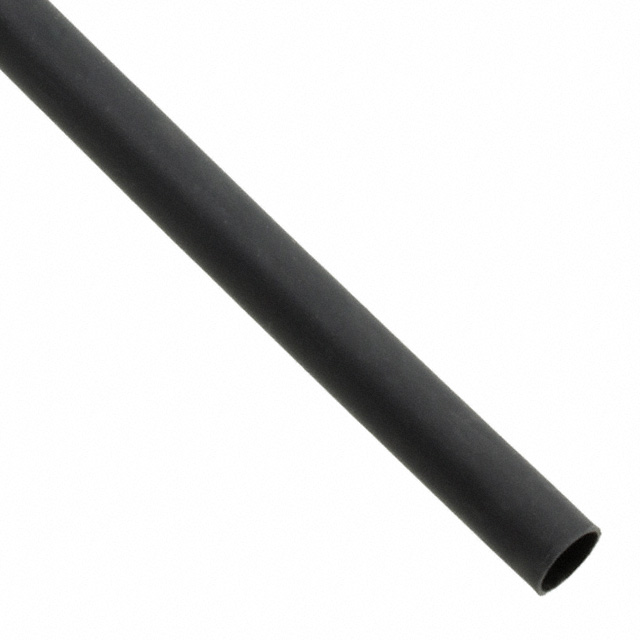

DWFR-6/2-0-STK

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.236" X 4' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TE Raychem Heat Shrink Shelf Life

DWFR-6/2-0-STK

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.236" X 4' BLACK

Deep-Dive with AI

DocumentsDatasheet TE Raychem Heat Shrink Shelf Life

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWFR-6/2-0-STK

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	0.079 in
Inner Diameter - Recovered	2.01 mm
Inner Diameter - Supplied [diameter]	0.236 in
Inner Diameter - Supplied [diameter]	5.99 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.045 in
Recovered Wall Thickness	1.14 mm
Shelf Life	60 Months
Shrink Temperature	60 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Semi-Flexible, Tubing

RAYCHEM DWFR Series

Part	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shrink Temperature	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Color	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection DWFR-4/1-0-STK	60 Months	0.039 in	0.99 mm	Adhesive Lined Flame Retardant	1.13 mm	0.044 "	60 °C	Polyolefin (PO) Irradiated	3.99 mm	0.157 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C	4 to 1	35 °C
TE Connectivity Raychem Cable Protection DWFR-40/13-0-STK	60 Months			Adhesive Lined Flame Retardant			60 °C	Polyolefin (PO) Irradiated	1.575 "		1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C		35 °C	1	3	13 mm	0.512 in	0.1 in	2.54 mm	40.01 mm
TE Connectivity Raychem Cable Protection DWFR-6/2-0-STK	60 Months			Adhesive Lined Flame Retardant			60 °C	Polyolefin (PO) Irradiated	5.99 mm	0.236 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C		35 °C	1	3	2.01 mm	0.079 in	0.045 in	1.14 mm
TE Connectivity Raychem Cable Protection DWFR-3/1-0-STK	60 Months	0.039 in	0.99 mm	Adhesive Lined Flame Retardant	1.13 mm	0.044 "	60 °C	Polyolefin (PO) Irradiated	3 mm	0.118 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C		35 °C	1	3
TE Connectivity Raychem Cable Protection DWFR-52/13-0-STK	60 Months			Adhesive Lined Flame Retardant			60 °C	Polyolefin (PO) Irradiated	52 mm	2.047 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C	4 to 1	35 °C			13 mm	0.512 in	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection DWFR-12/3-0-STK	60 Months	0.118 in	2.99 mm	Adhesive Lined Flame Retardant			60 °C	Polyolefin (PO) Irradiated	11.99 mm	0.472 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C	4 to 1	35 °C					0.055 in	1.4 mm
TE Connectivity Raychem Cable Protection DWFR-32/8-0-STK	60 Months	0.315 in	8 mm	Adhesive Lined Flame Retardant			60 °C	Polyolefin (PO) Irradiated	32 mm	1.26 in	1.22 m	4 ft	Black	Semi-Flexible Tubing	-40 °C	110 °C	4 to 1	35 °C					0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.11
		5	$ 6.81
		10	$ 5.33
		25	$ 4.74
		50	$ 4.44
		100	$ 4.15

Description

General part information

RAYCHEM DWFR Series

Heat Shrink Tubing, Semi-Flexible 0.236" (5.99mm) 3 to 1 Black 4.00' (1.22m)
