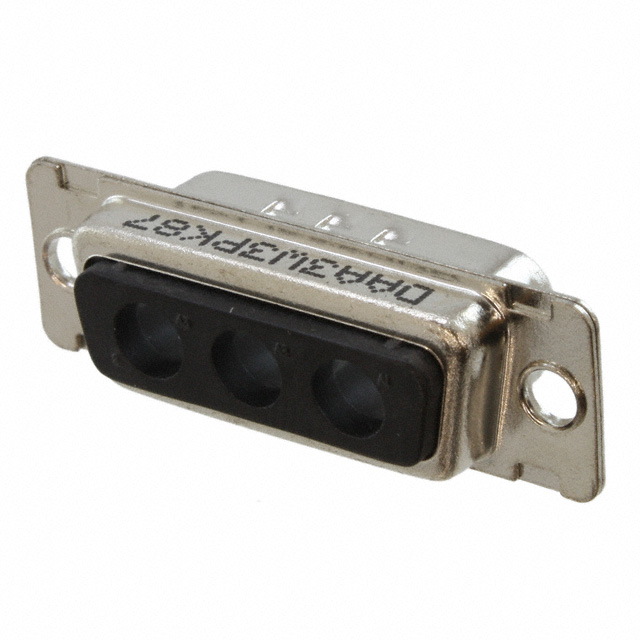

DAA-3W3P-K87-F0

Active

ITT Cannon, LLC

CONN D-SUB PIN 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN D-SUB PIN 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	DAA-3W3P-K87-F0

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Note	Features	Contact Type	Flange Feature	Number of Positions	Connector Type	Connector Style	Dielectric Material
ITT Cannon, LLC DAA-3W3P-K87-F0	Black	105 ░C	-55 °C	1	2 (DA A)	3W3	Contacts Not Included	Grounding Indents	Coax Power	Housing/Shell (Unthreaded)	3	Plug for Male Contacts	Combo D-Sub	Polycyclohexylenedimethylene Terephthalate (PCT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub, Combo Connector 3 (Coax or Power) Position
