7804R B591640

Obsolete

Belden Inc.

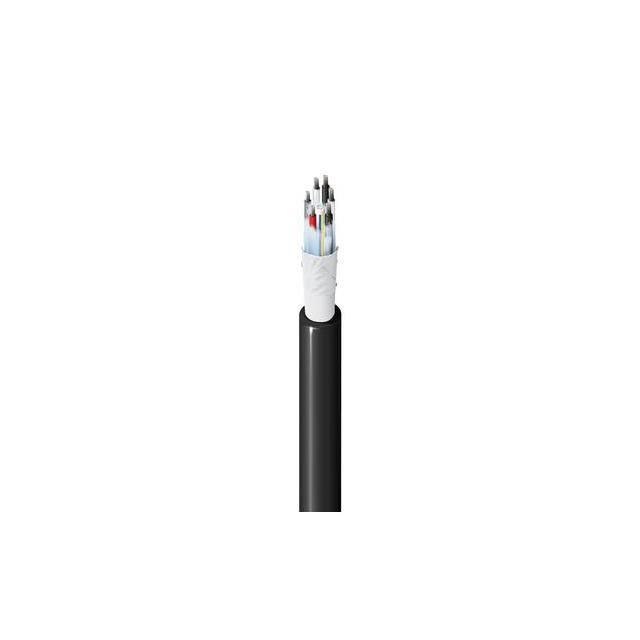

COMPOSITE CAMERA CABLE

Search across all available documentation for this part.

Obsolete

Belden Inc.

COMPOSITE CAMERA CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	7804R B591640

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19, 7
Conductor Strand [custom]	32
Jacket (Insulation) Diameter [diameter]	0.357 in
Jacket (Insulation) Diameter [diameter]	9.06 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1640 ft
Length	499.9 m
Number of Conductors	6, 2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	20 AWG, 24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Cable Type	Jacket (Insulation) Material	Shield Material	Shield Type	Number of Conductors	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Conductor Material	Wire Gauge	Jacket Color
Belden Inc. 7804R B591640	7 19	32	95 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	Braid	2 6	1640 ft	499.9 m	0.357 in	9.06 mm	Poly-Vinyl Chloride (PVC)	-40 °C	70 °C	UL Style CMR	Copper Tinned	20 AWG 24 AWG	Black
Belden Inc. 7804R B591000	7 19	32	95 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	Braid	2 6	1000 ft	304.8 m	0.357 in	9.06 mm	Poly-Vinyl Chloride (PVC)	-40 °C	70 °C	UL Style CMR	Copper Tinned	20 AWG 24 AWG	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (6+2 Fiber) Conductor Multi-Conductor Cable Black 20 AWG, 24 AWG Braid 1640.0' (499.9m)
