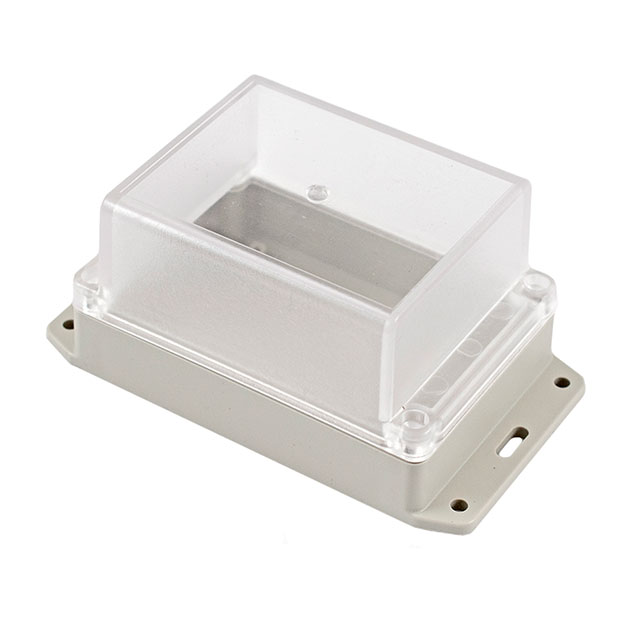

RP1145BFC

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 6.14"L X 3.39"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 6.14"L X 3.39"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1145BFC

Area (L x W)	134 cm˛
Area (L x W)	20.7 in˛
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	70.1 mm
Height [z]	2.76 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	155.96 mm
Size / Dimension [x]	6.14 in
Size / Dimension [y]	3.39 in
Size / Dimension [y]	86.11 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Design	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Color	Container Type	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing RP1145C	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70.1 mm	2.76 in	Clear Cover/Door Gray	Box	108 cm²	16.7 in²	4.94 in	3.39 in	125.48 mm	86.11 mm
Hammond Manufacturing RP1145BFC	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70.1 mm	2.76 in	Clear Cover/Door Gray	Box	134 cm˛	20.7 in˛	6.14 in	3.39 in	155.96 mm	86.11 mm
Hammond Manufacturing RP1145BF	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70 mm	2.756 "	Gray	Box	134 cm˛	20.7 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.96

General part information

Box ABS Gray, Clear Cover/Door Cover Included 6.140" L x 3.390" W (155.96mm x 86.11mm) X 2.760" (70.10mm)

Technical documentation and resources

No documents available
