ZL2004ALNN-01

Active

Renesas Electronics Corporation

IC REG CTRLR BUCK PMBUS 32QFN

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC REG CTRLR BUCK PMBUS 32QFN

Technical Specifications

Parameters and characteristics for this part

Specification	ZL2004ALNN-01

Clock Sync	True
Control Features	Tracking, Power Good, Current Limit, Soft Start, Enable
Frequency - Switching	400 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [custom]	0 °C, 65 °C
Output Configuration	Positive
Output Phases	1
Output Type	PWM Signal

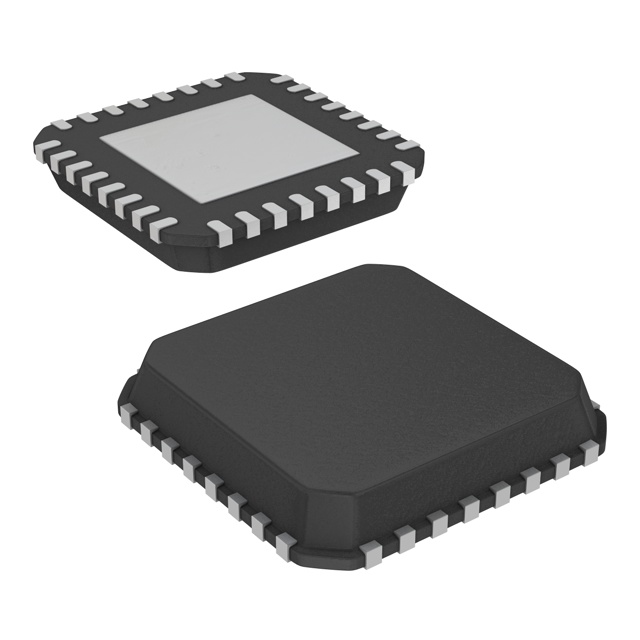

Package / Case	32-VFQFN Exposed Pad
Serial Interfaces	SMBus, I2C, PMBus
Supplier Device Package	32-QFN (5x5)
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	10 V
Voltage - Supply (Vcc/Vdd) [Min]	8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC REG CTRLR BUCK PMBUS 32QFN

Part	Output Type	Topology	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [custom]	Output Phases	Clock Sync	Supplier Device Package	Serial Interfaces	Package / Case	Frequency - Switching	Output Configuration	Number of Outputs	Control Features	Function	Mounting Type
Renesas Electronics Corporation ZL2004ALNN-01	PWM Signal	Buck	10 V	8 V	0 °C, 65 °C	1		32-QFN (5x5)	I2C, PMBus, SMBus	32-VFQFN Exposed Pad	400 kHz	Positive	1	Current Limit, Enable, Power Good, Soft Start, Tracking	Step-Down	Surface Mount

General part information

Buck Regulator Positive Output Step-Down I2C, PMBus, SMBus DC-DC Controller IC 32-QFN (5x5)
