TEN 3-4822WI

Traco Power

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

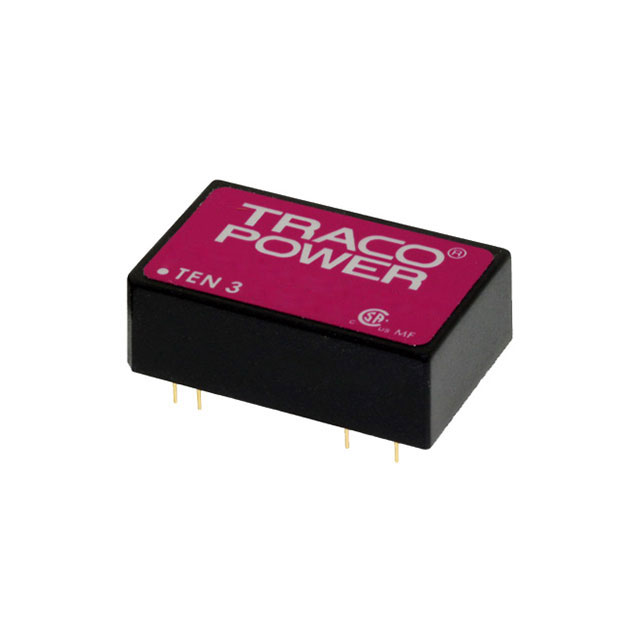

TEN 3-4822WI

Traco Power

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 3-4822WI

Applications	ITE (Commercial)
Approval Agency	cCSAus, CB
Current - Output (Max)	125 mA
Current - Output (Max)	125 mA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 8 Leads
Power (Watts)	3 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.79 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TEN 3 Series

Part	Type	Current - Output (Max)	Current - Output (Max)	Approval Agency	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Mounting Type	Voltage - Isolation	Features	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Efficiency	Package / Case	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
Traco Power TEN 3-2423	Isolated Module	100 mA	100 mA	CB cCSAus	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 8 Leads	2	36 V	85 °C	-40 °C	-15 V	Through Hole	1.5 kV	SCP	15 V	ITE (Commercial)
Traco Power TEN 3-0511N	Isolated Module			CB cCSAus	4.5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 7 Leads	1	9 V	85 °C	-40 °C		Through Hole	1.5 kV	SCP	5 V	ITE (Commercial)	600 mA	80 %
Traco Power TEN 3-1213	Isolated Module			CB cCSAus	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 7 Leads	1	18 V	85 °C	-40 °C		Through Hole	1.5 kV	SCP	15 V	ITE (Commercial)	200 mA	85 %
Traco Power TEN 3-2415WIN	Isolated Module			CB cCSAus	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	23-DIP Module	1	36 V	85 °C	-40 °C		Through Hole	3000 V	SCP	24 V	ITE (Commercial)	125 mA	81 %	7 Leads
Traco Power TEN 3-4810WIN	Isolated Module			CB cCSAus	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm		24-DIP Module 7 Leads	1	75 V	85 °C	-40 °C		Through Hole	1.5 kV	SCP	3.3 V	ITE (Commercial)	750 mA	77 %
Traco Power TEN 3-4815N	Isolated Module			CB cCSAus	36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 7 Leads	1	75 V	85 °C	-40 °C		Through Hole	1.5 kV	SCP	24 V	ITE (Commercial)	125 mA	84 %
Traco Power TEN 3-4822	Isolated Module	125 mA		CB cCSAus	36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 8 Leads	2	72 V	85 °C	-40 °C	-12 V	Through Hole	1.5 kV	SCP	12 V	ITE (Commercial)		84 %		125 mA
Traco Power TEN 3-4822WI	Isolated Module	125 mA		CB cCSAus	18 V	32 mm	0.4 "	1.26 in		0.79 "		3 W	24-DIP Module 8 Leads	2	75 V	85 °C	-40 °C	-12 V	Through Hole	1.5 kV	SCP	12 V	ITE (Commercial)				125 mA	10.2 mm	20 mm
Traco Power TEN 3-2421	Isolated Module	250 mA	250 mA	CB cCSAus	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm		24-DIP Module 8 Leads	2	36 V	85 °C	-40 °C	-5 V	Through Hole	1.5 kV	SCP	5 V	ITE (Commercial)		79 %
Traco Power TEN 3-2422N	Isolated Module	125 mA		CB cCSAus	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3 W	24-DIP Module 8 Leads	2	36 V	85 °C	-40 °C	-12 V	Through Hole	1.5 kV	SCP	12 V	ITE (Commercial)		84 %		125 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.10
		10	$ 22.56
		25	$ 21.81
		50	$ 21.27
		100	$ 20.73
		250	$ 20.05
		500	$ 19.55

Description

General part information

TEN 3 Series

Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 75V Input
