102156-1
ActiveTE Connectivity AMP Connectors

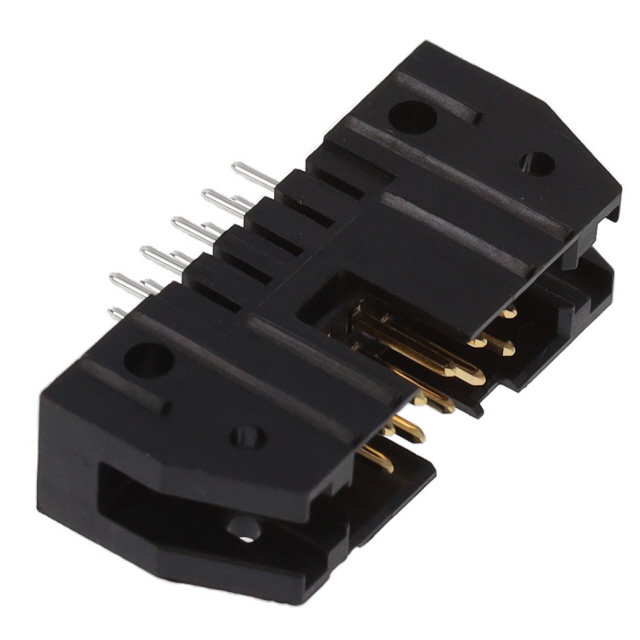

CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102156-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102156-1 | 102156 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 3.94 mm | 3.94 mm |
| Contact Length - Post | 0.155 " | 0.155 " |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.549 in | 0.549 in |
| Insulation Height | 13.94 mm | 13.94 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 10 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.684 in | 0.684 in |
| Overall Contact Length | 17.37 mm | 17.37 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.23 | |
| 90 | $ 1.08 | |||
| 180 | $ 1.01 | |||
| 540 | $ 0.98 | |||
102156 Series
CONN HEADER VERT 24POS 2.54MM
| Part | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Voltage Rating | Insulation Color | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Shrouding | Number of Rows | Number of Positions | Contact Type | Connector Type | Current Rating (Amps) | Contact Finish - Post | Contact Finish - Mating | Fastening Type | Number of Positions Loaded | Material Flammability Rating | Style | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102156-5 | 0.684 in | 17.37 mm | 0.1 in | 2.54 mm | 0.549 in | 13.94 mm | 3.94 mm | 0.155 " | 250 VAC | Black | Solder | 2.54 µm | 100 µin | Square | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 2 | 24 | Male Pin | Header | 1 A | Tin-Lead | Gold or Gold-Palladium | Push-Pull | All | UL94 V-0 | Board to Cable/Wire | Through Hole | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | |
TE Connectivity AMP Connectors 102156-3 | 0.684 in | 17.37 mm | 0.1 in | 2.54 mm | 0.549 in | 13.94 mm | 3.94 mm | 0.155 " | 250 VAC | Black | Solder | 2.54 µm | 100 µin | Square | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 2 | Male Pin | Header | 1 A | Tin-Lead | Gold or Gold-Palladium | Push-Pull | All | UL94 V-0 | Board to Cable/Wire | Through Hole | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 16 | |
TE Connectivity AMP Connectors 102156-2 | 0.684 in | 17.37 mm | 0.1 in | 2.54 mm | 0.549 in | 13.94 mm | 3.94 mm | 0.155 " | 250 VAC | Black | Solder | 2.54 µm | 100 µin | Square | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 2 | 14 | Male Pin | Header | 1 A | Tin-Lead | Gold or Gold-Palladium | Push-Pull | All | UL94 V-0 | Board to Cable/Wire | Through Hole | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | |
TE Connectivity AMP Connectors 102156-1 | 0.684 in | 17.37 mm | 0.1 in | 2.54 mm | 0.549 in | 13.94 mm | 3.94 mm | 0.155 " | 250 VAC | Black | Solder | 2.54 µm | 100 µin | Square | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 2 | 10 | Male Pin | Header | 1 A | Tin-Lead | Gold or Gold-Palladium | Push-Pull | All | UL94 V-0 | Board to Cable/Wire | Through Hole | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in |
Description
General part information
102156 Series
Connector Header Through Hole 10 position 0.100" (2.54mm)
