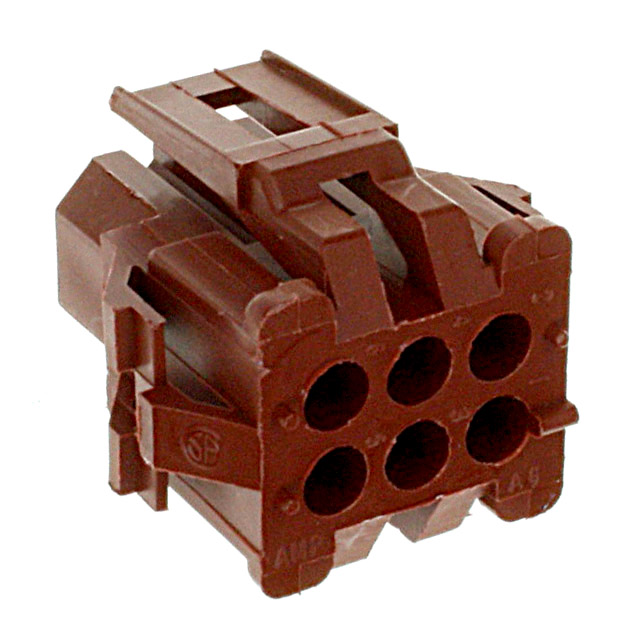

1-640520-0

Active

TE Connectivity Raychem Cable Protection

06P MR II PLUG HSG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MR SERIES CONNECTORS REPORT +6

1-640520-0

Active

TE Connectivity Raychem Cable Protection

06P MR II PLUG HSG

Deep-Dive with AI

DocumentsDatasheet MR SERIES CONNECTORS REPORT +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-640520-0

Color	Black, Red
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

AMP Miniature Rectangular MR Series

Pin & Socket Connectors 20CKT MATRIX CAP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Applications	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Material	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Shape	Material Flammability Rating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Number of Positions	Style	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish - Mating	Contact Type	Number of Rows	Note	Contact Termination	Color	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	For Use With/Related Products	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Thickness [custom]	Panel Thickness [custom]	Bushing, Grommet Type	Panel Thickness	Panel Thickness	Contact Length - Post	Contact Length - Post
TE Connectivity Raychem Cable Protection 640504-4	30 Áin	0.76 Ám	Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header	4.2 mm	0.165 in	Shrouded - 4 Wall	Black Red	Solder	150 Áin	3.81 Ám	0.21 in	5.33 mm	Tin-Lead	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	20	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC	Gold	Male Pin
TE Connectivity Raychem Cable Protection 2-640497-4	30 Áin	0.76 Ám	Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header			Shrouded - 4 Wall	Black Red	Solder	150 Áin	3.81 Ám	0.21 in	5.33 mm	Tin	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	2	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC	Gold PdNi +Gold	Male Pin	1
TE Connectivity Raychem Cable Protection 2-640505-2	30 Áin	0.76 Ám	Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header	4.2 mm	0.165 in	Shrouded - 4 Wall	Black Red	Solder	150 Áin	3.81 Ám	0.15 in	3.81 mm	Tin	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	24	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC	Gold PdNi +Gold	Male Pin
TE Connectivity Raychem Cable Protection 640497-1			Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header			Shrouded - 4 Wall	Black Red	Solder			0.15 in	3.81 mm	Tin	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	2	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC		Male Pin	1
TE Connectivity Raychem Cable Protection 1-640520-0			Nylon Polyamide (PA)						Locking Ramp		Plug													Panel Mount Snap-In				6			85 °C	-55 °C			Female Socket	2	Contacts Not Included	Crimp	Black Red	4.2 mm	0.165 in	4.2 mm	0.165 in
TE Connectivity Raychem Cable Protection 794001-2																																						Crimp						Socket	24 AWG	26 AWG	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 2-380936-0																							UL94 V-0																Black											Cable Wires	0.562 in	14.27 mm	Poly-Vinyl Chloride (PVC)	9.52 mm	0.375 in	11.13 mm	0.438 in	Bushing Split
TE Connectivity Raychem Cable Protection 2-350380-1																							UL94 V-0																Black											Cable Wires	0.42 in	10.67 mm	Poly-Vinyl Chloride (PVC)	7.14 mm	0.281 in			Bushing Split	7.95 mm	0.313 in
TE Connectivity Raychem Cable Protection 2-640500-6	30 Áin	0.76 Ám	Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header	4.2 mm	0.165 in	Shrouded - 4 Wall	Black Red	Solder	150 Áin	3.81 Ám			Tin	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	6	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC	Gold	Male Pin	2																									0.18 in	4.57 mm
TE Connectivity Raychem Cable Protection 640497-3			Nylon Polyamide (PA)	General Purpose	4.2 mm	0.165 in	13.5 mm	0.531 in	Latch Lock	Phosphor Bronze	Header			Shrouded - 4 Wall	Black Red	Solder			0.21 in	5.33 mm	Tin	Circular	UL94 V-0	Through Hole	0.22 in	5.59 mm	6 A	2	Board to Cable/Wire	All	105 ░C	-55 °C	250 VAC		Male Pin	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 2.27
		25	$ 2.26
		50	$ 2.23
		100	$ 2.05
		250	$ 2.04
		500	$ 1.85
		1000	$ 1.66
		2500	$ 1.53

Description

General part information

AMP Miniature Rectangular MR Series

Pin & Socket Connectors 20CKT MATRIX CAP
