1-776228-1

Active

TE Connectivity AMP Connectors

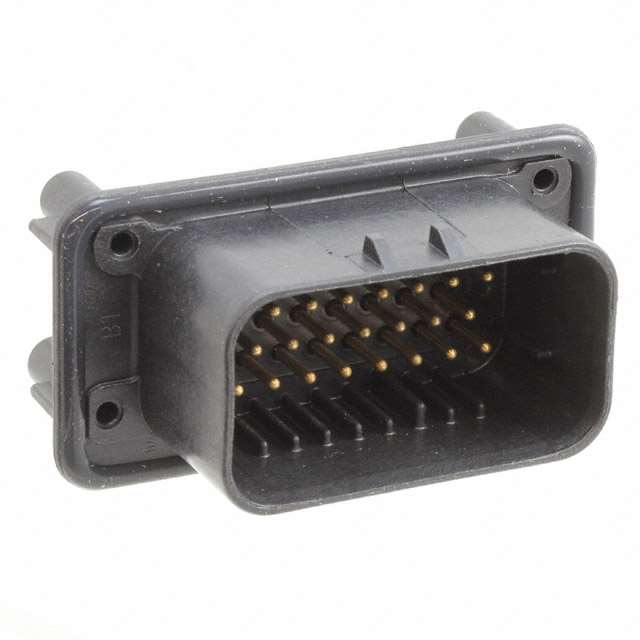

CONN HEADER VERT 23POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-776228-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 23POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-776228-1	776228 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	Gold-Palladium	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealed, Mounting Flange	Sealed, Mounting Flange
Insulation Color	Black	Blue, Black, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	23	23
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776228 Series

CONN HEADER VERT 23POS 4MM

Part	Mounting Type	Contact Type	Applications	Number of Rows	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Shrouding	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Voltage Rating	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Style	Fastening Type	Connector Type	Features	Number of Positions Loaded	Contact Material	Contact Finish - Mating
TE Connectivity AMP Connectors 776228-5	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Blue	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass
TE Connectivity AMP Connectors 776228-1	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Black	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass
TE Connectivity AMP Connectors 1-776228-2	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	125 °C	Natural	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass	Gold-Palladium
TE Connectivity AMP Connectors 1-776228-5	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	125 °C	Blue	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass	Gold-Palladium
TE Connectivity AMP Connectors 1-776228-1	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	125 °C	Black	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass	Gold-Palladium
TE Connectivity AMP Connectors 776228-2	Panel Mount, Through Hole	Male Pin	Automotive, Industrial	3	Circular	Solder	0.157 "	4 mm	23	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	-40 °C	105 ░C	Natural	250 VAC	Varies by Wire Gauge	0.157 in	4 mm	Board to Cable/Wire	Locking Ramp	Header	Mounting Flange, Sealed	All	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.10
		10	$ 13.81
		100	$ 11.53
		500	$ 9.99
		1000	$ 9.92

Description

General part information

776228 Series

Connector Header Panel Mount, Through Hole 23 position 0.157" (4.00mm)
