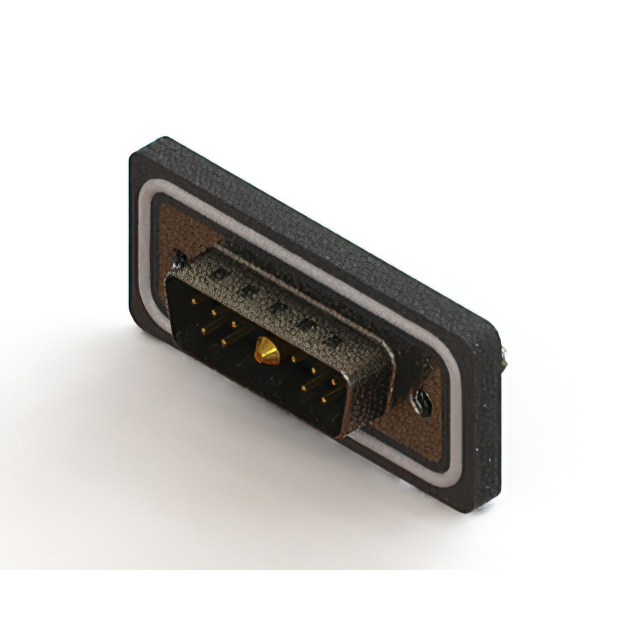

CONN D-SUB PLUG 11P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627W11W1624-4ND
ActiveEDAC Inc.
CONN D-SUB PLUG 11P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627W11W1624-4ND |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Board Side (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 11 |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 11C1, 11W1 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627W11W Series
| Part | Termination | Current Rating (Amps) | Shell Material, Finish | Voltage Rating | Connector Style | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Ingress Protection | Flange Feature | Features | Mounting Type | Color | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type | Contact Material | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 10A 5A | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.76 Ám | 30 Áin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | ||
EDAC Inc. | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | Flash | 5 A 40 A | ||||
EDAC Inc. | Solder | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Board Side (M3) | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.76 Ám | 30 Áin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | 5 A 20 A | ||
EDAC Inc. | Solder | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Board Side (M3) | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.38 µm | 15 µin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | 5 A 30 A | ||
EDAC Inc. | 10A 5A | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Housing/Shell (4-40) | Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.127 µm | 5 µin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | |||
EDAC Inc. | Solder | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Board Side (M3) | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.76 Ám | 30 Áin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | 5 A 40 A | ||
EDAC Inc. | Solder | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Board Side (M3) | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.38 µm | 15 µin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | 5 A 20 A | ||
EDAC Inc. | Nickel Plated Steel | 125 VDC | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | -25 °C | 85 °C | UL94 V-0 | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Grounding Indents Shielded | Panel Mount Through Hole | Black | 10 | 1 | 11 | 11C1 11W1 | 2 | 0.127 µm | 5 µin | Signal and Power | Male Pins Plug | Copper Alloy | 2 | Gold | 5 A 40 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 16.84 | |
Description
General part information
627W11W Series
11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
