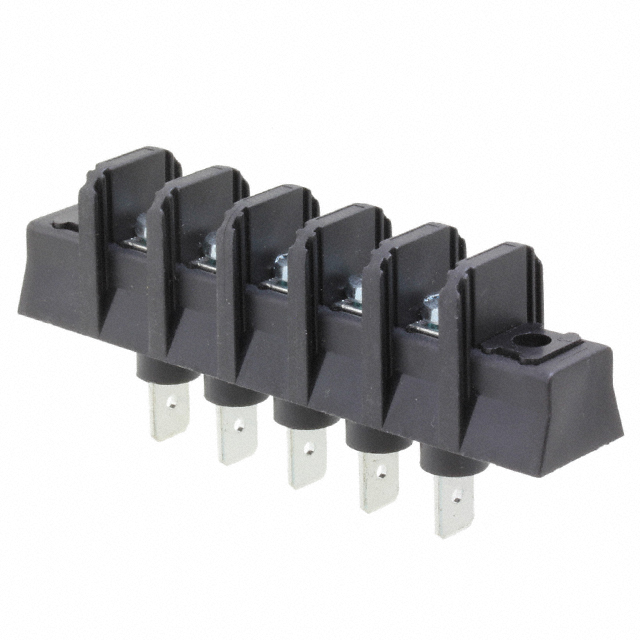

1546977-5
ActiveTE Connectivity Raychem Cable Protection
SSB7TG050501=TERM BLOCK ASSY
Deep-Dive with AI
Search across all available documentation for this part.
1546977-5
ActiveTE Connectivity Raychem Cable Protection
SSB7TG050501=TERM BLOCK ASSY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1546977-5 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Quick Connect, Insulated |
| Bottom Termination [custom] | 0.25 " |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 5 |
| Number of Rows | 1 |
| Number of Wire Entries | 5 |
| Operating Temperature [custom] | -60 °C, 105 °C |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.71 | |
| 10 | $ 6.72 | |||
| 25 | $ 6.54 | |||
| 90 | $ 6.37 | |||
| 180 | $ 5.98 | |||
| 270 | $ 5.94 | |||
| 540 | $ 5.59 | |||
| 1080 | $ 4.99 | |||
Description
General part information
BUCHANAN SSB7 Series
5 Position Barrier Strip, Dual Barrier, Quick Connect Tab Bottom Termination, Wire-to-Wire, 11.1 mm [.438 in] Centerline, 1 Row, 600 V, BUCHANAN SSB7
