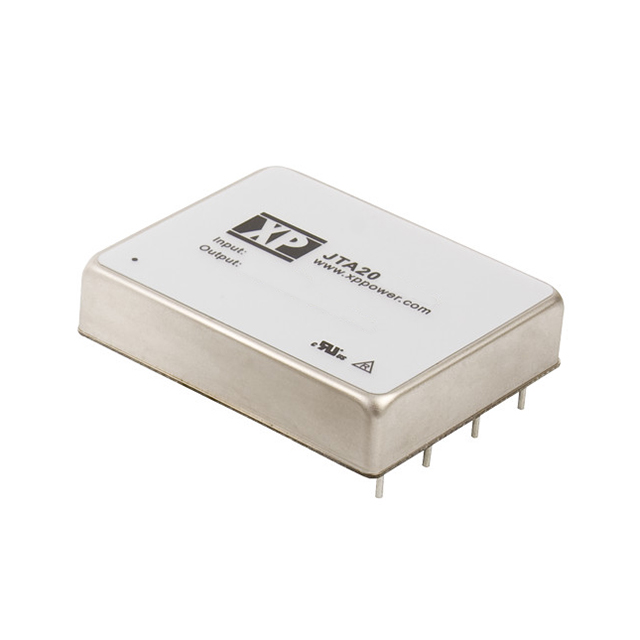

JTA2048S12
ActiveXP POWER
DC DC CONVERTER 12V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JTA2048S12
ActiveXP POWER
DC DC CONVERTER 12V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JTA2048S12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 84 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 7 Leads |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [y] | 1.6 " |
| Size / Dimension [z] | 0.45 " |
| Size / Dimension [z] | 11.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 7 | $ 92.94 | |
Description
General part information
JTA2048 Series
Isolated Module DC DC Converter 1 Output 12V 1.67A 18V - 75V Input
